4618
ObsoleteKeystone Electronics

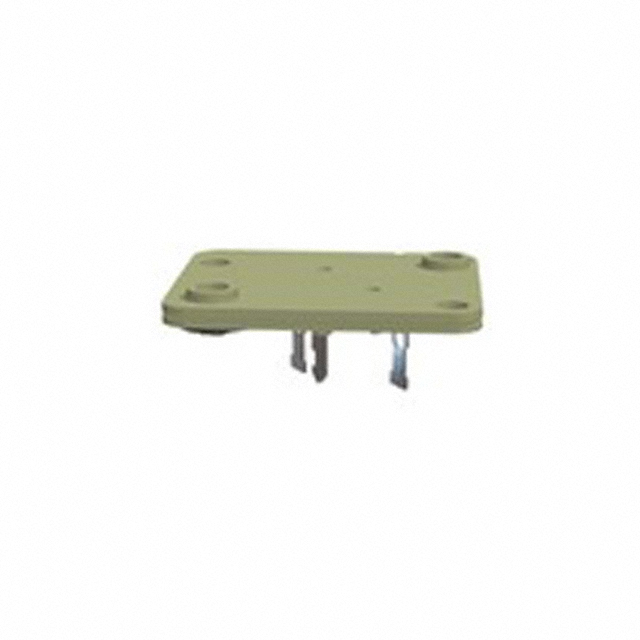

CONN TRANSIST TO-3 3POS TIN
4618
ObsoleteKeystone Electronics
CONN TRANSIST TO-3 3POS TIN
Description
General part information
4618
3 (Rectangular) Pos Transistor, TO-3 Socket Tin Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 4618 |
|---|---|
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Material - Mating | Brass |
| Contact Material - Post | Brass |
| Features | Closed Frame |
| Housing Material | Polyester, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Chassis Mount |
| Number of Positions or Pins (Grid) | 3 |
| Number of Positions or Pins (Grid) Shape | Rectangular |
| Termination | Solder |
| Type | TO-3, Transistor |
