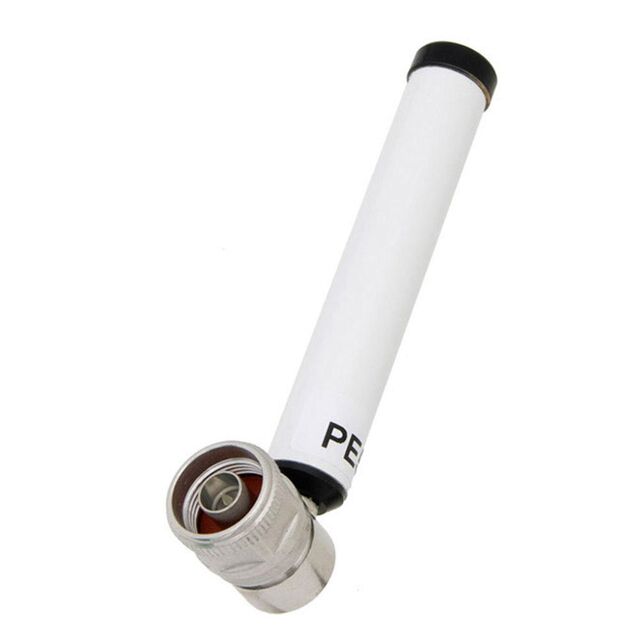

FM51133
ActiveFairview Microwave
ANTENNA TYPE N PLUG 2.4 MHZ-2.5
FM51133
ActiveFairview Microwave
ANTENNA TYPE N PLUG 2.4 MHZ-2.5
Description
General part information
FM51133
RF ANTENNA Bluetooth, IoT, Wi-Fi, Zigbee™ Whip, Tilt N Type Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FM51133 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | Bluetooth, Wi-Fi, Zigbee™, IoT |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 3 dBi |
| Height (Max) | 4.06 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination Type | N Type Male |
| VSWR | 1.43 |
