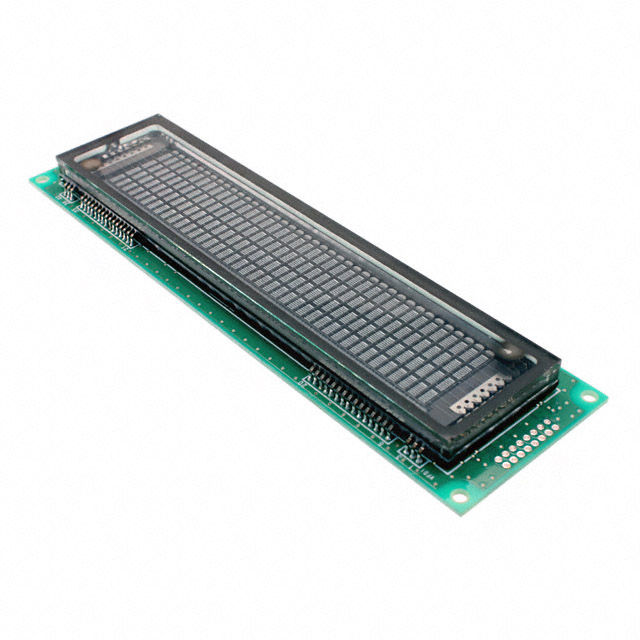

CU40045-UW1J
ActiveNoritake U.S.A., Inc.
MODULE VF DISPLAY 40X4 EXT TEMP
Deep-Dive with AI
Search across all available documentation for this part.
CU40045-UW1J
ActiveNoritake U.S.A., Inc.
MODULE VF DISPLAY 40X4 EXT TEMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CU40045-UW1J |
|---|---|
| Character Size [custom] | 4.89 mm |
| Character Size [custom] | 2.07 mm |
| Display Format [x] | 40 |
| Display Format [y] | 4 |
| Display Type | Character |
| Format [x] | 5 Dots |
| Format [y] | 7 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline L x W x H [x] | 190 mm |
| Outline L x W x H [y] | 54 mm |
| Outline L x W x H [z] | 19.7 mm |
| Viewing Area [x] | 137.4 mm |
| Viewing Area [y] | 23.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 341.77 | |
| 16 | $ 328.63 | |||
Description
General part information
CU40045 Series
Vacuum Fluorescent Display (VFD) 40 x 4 Character 5V 190.00mm x 54.00mm x 19.70mm
