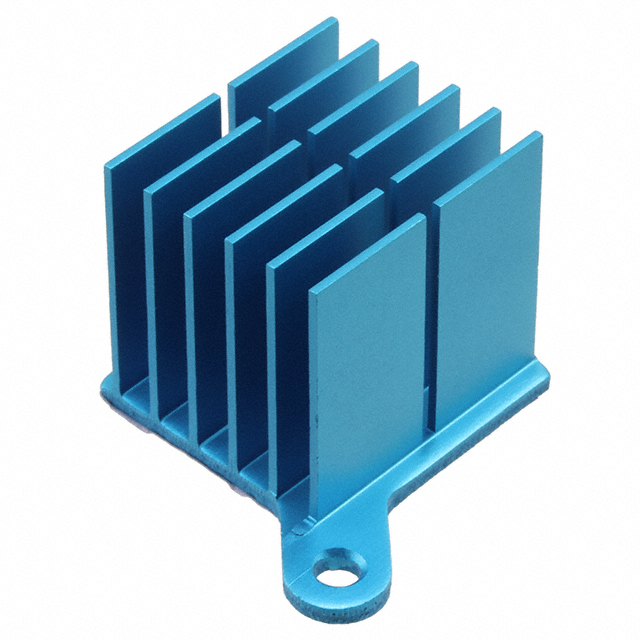

ATS-CPX025025025-140-C1-R0

ATS-CPX025025025-140-C1-R0

Active
Advanced Thermal Solutions Inc.

HEAT SINK PASSIVE STRAIGHT SCREW MOUNT ALUMINUM 6063 7.2°C/W BLUE ANODIZED

Find alt
ATS-CPX025025025-140-C1-R0

ATS-CPX025025025-140-C1-R0

Active
Advanced Thermal Solutions Inc.

HEAT SINK PASSIVE STRAIGHT SCREW MOUNT ALUMINUM 6063 7.2°C/W BLUE ANODIZED

Find alt

Description

General part information

ATS-CPX Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount

Technical Specifications

Parameters and characteristics for this part

SpecificationATS-CPX025025025-140-C1-R0
Attachment MethodPush Pin
Fin Height0.984 in
Length0.984 in
MaterialAluminum
Material FinishBlue Anodized
Package CooledASIC...), BGA, ASIC, LGA, CPU, Assorted (BGA
ShapeSquare, Fins
Thermal Resistance7.21 °C/W
TypeTop Mount, Extrusion
Width0.984 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ATS-CPX025025025-140-C1-R0 | Datasheet
