FMAD1330
ObsoleteFairview Microwave
ADAPT JACK-PLUG 1.85MM 1.25 VSWR
FMAD1330
ObsoleteFairview Microwave
ADAPT JACK-PLUG 1.85MM 1.25 VSWR
Description
General part information
FMAD1330

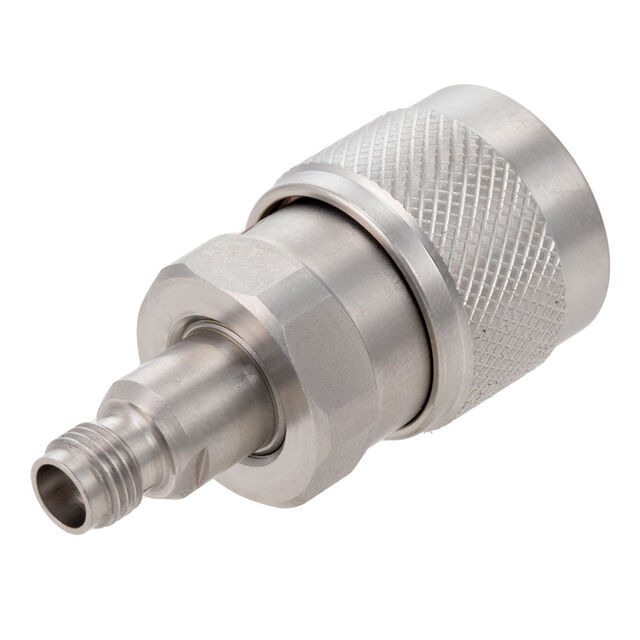

Adapter Coaxial Connector 1.85mm Jack, Female Socket To N Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1330 |
|---|---|
| Adapter Series | N |
| Adapter Series Size | 1.85 mm |
| Adapter Type | Plug to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) Jack Size | 1.85 mm |
| Convert From (Adapter End) Type | Female Socket |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | N Plug |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
