PE45753
ActivePasternack

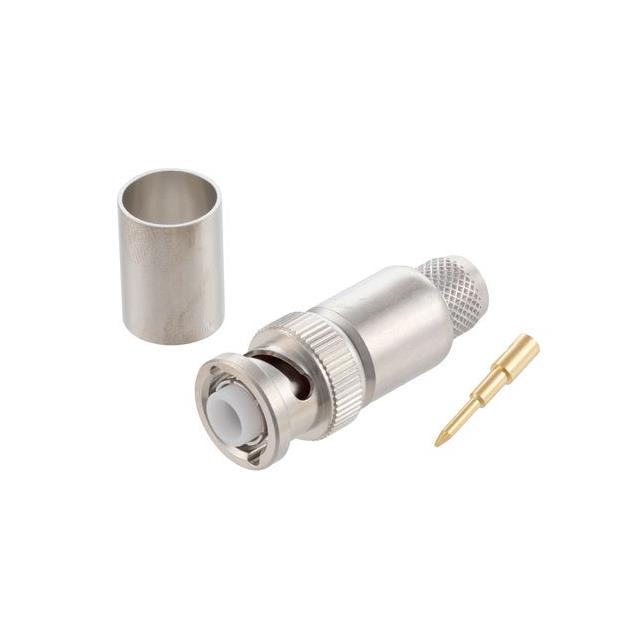

MHV MALE CONNECTOR CRIMP/SOLDER
PE45753
ActivePasternack
MHV MALE CONNECTOR CRIMP/SOLDER
Description
General part information
PE45753
MHV Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45753 |
|---|---|
| Body Finish | Tin |
| Body Material | Brass |
| Cable Group | 214, RG-9, 393, 225 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MHV |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 300 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
