STR485LVQT
Active3.3V RS485 COMPATIBLE WITH 1.8V I/OS AND SELECTABLE SPEED 20MBPS OR 250KBPS
Deep-Dive with AI
Search across all available documentation for this part.
STR485LVQT
Active3.3V RS485 COMPATIBLE WITH 1.8V I/OS AND SELECTABLE SPEED 20MBPS OR 250KBPS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STR485LVQT | STR485 Series |
|---|---|---|
| Data Rate | 20 Mbps | 20 Mbps |
| Duplex | Half | Half |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 ░C | 105 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |

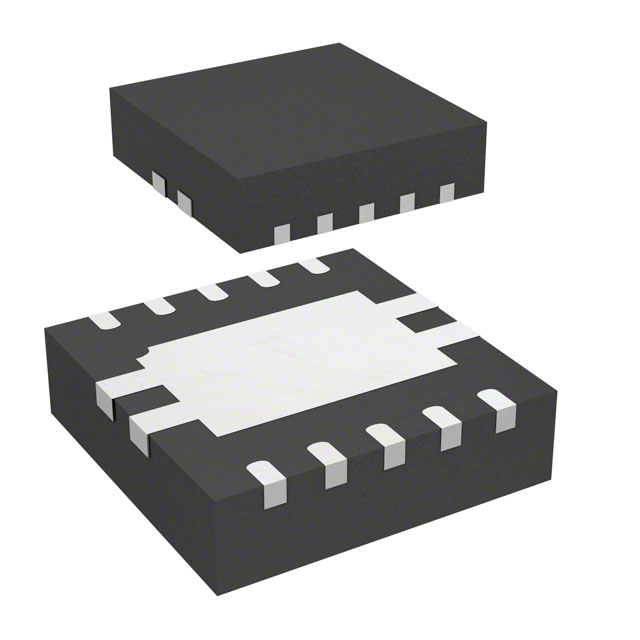

| Package / Case | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad |
| Protocol | RS485 | RS485 |
| Receiver Hysteresis | 70 mV | 70 mV |
| Supplier Device Package | 10-DFN (3x3) | 10-DFN (3x3) |
| Type | Transceiver | Transceiver |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 1.65 V | 1.65 - 3 V |
STR485 Series
3.3V RS485 compatible with 1.8V I/Os and selectable speed 20Mbps or 250kbps
| Part | Duplex | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Mounting Type | Protocol | Receiver Hysteresis | Data Rate | Supplier Device Package | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STR485LVQT | Half | -40 °C | 105 ░C | 1.65 V | 3.6 V | 10-VFDFN Exposed Pad | Surface Mount | RS485 | 70 mV | 20 Mbps | 10-DFN (3x3) | Transceiver |
STMicroelectronics STR485ELVQT | Half | -40 °C | 125 °C | 3 V | 3.6 V | 10-VFDFN Exposed Pad | Surface Mount | RS485 | 70 mV | 20 Mbps | 10-DFN (3x3) | Transceiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STR485 Series
The STR485 is a low power differential line transceiver for data transmission standard RS485 applications in half-duplex mode. Data and enable signals are compatible with 1.8 V or 3.3 V supplies.
Two speeds are selectable through SLR pin: fast data rate up to 20 Mbps or slow data rate for extended cable running to 250 kbps.
Excessive power dissipation caused by bus contention or faults is prevented by thermal shutdown circuit that forces the driver outputs into a high impedance state. The receiver has a fail-safe feature, which guarantees a high output state when the inputs are left open, shorted or idle.
