000-5275

Active

AMPHENOL RF

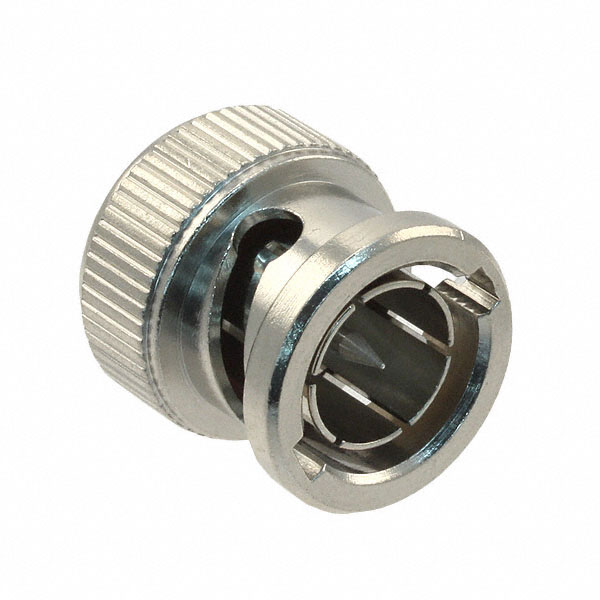

CONN CAP CVR SHORT FOR BNC JACK

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN CAP CVR SHORT FOR BNC JACK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-5275	000-52 Series

Accessory Type	Shorting, Cap (Cover)	Shorting, Cap (Cover)
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	-	392, 391, Belden 1620, 1859, 9292, 8213, RG-11, 7731, 11A
Center Contact Finish	Silver	Silver
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	-	Silver
Color	Silver	Silver
Connector Style	BNC	Triaxial, BNC
Connector Type	-	Female Socket, Jack
Contact Termination	-	Solder
Dielectric Material	-	Copolymer
For Use With/Related Products	BNC Jacks	BNC Jacks
Frequency - Max	-	300 MHz
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Insulator, 1 Connector, 1 Clamp, 1 Gasket, 2 Washers, 2 Braid Clamps, 1 Contact
Ingress Protection	-	Weatherproof
Mating Cycles	-	500
Mounting Type	-	Free Hanging (In-Line)
Number of Ports	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Shield Termination	-	Clamp

CONN TRIAX JACK STR 50OHM SOLDER

Part	Contact Termination	Housing Color	Mating Cycles	Frequency - Max [Max]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Includes	Body Material	Mounting Type	Shield Termination	Impedance	Number of Ports	Cable Group	Center Contact Plating	Connector Style	Ingress Protection	Dielectric Material	Body Finish	For Use With/Related Products	Color	Center Contact Finish	Accessory Type
AMPHENOL RF 000-52975	Solder	Silver	500	300 MHz	Female Socket, Jack	85 °C	-40 °C	Beryllium Copper	1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Insulator, 2 Braid Clamps, 2 Washers	Brass	Free Hanging (In-Line)	Clamp	50 Ohms	1	11A, 1859, 391, 392, 7731, 8213, 9292, Belden 1620, RG-11	Silver	Triaxial	Weatherproof	Copolymer	Nickel
AMPHENOL RF 000-5275								Brass		Brass							BNC			Nickel	BNC Jacks	Silver	Silver	Cap (Cover), Shorting

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cap (Cover), Shorting For BNC Jacks

Technical documentation and resources

No documents available
