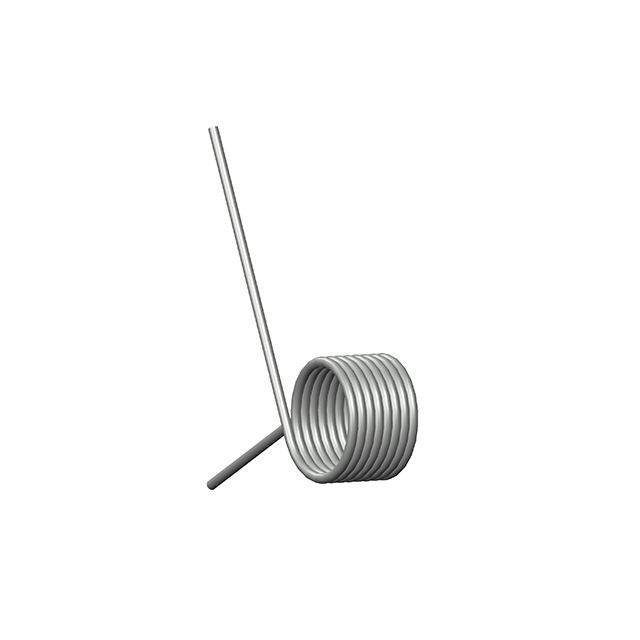

TO-5097LCS
ActiveCentury Spring Corp
TOR O=.377, W=.030
TO-5097LCS
ActiveCentury Spring Corp
TOR O=.377, W=.030
Description
General part information
TO-5097LCS
TOR O=.377, W=.030
Technical Specifications
Parameters and characteristics for this part
| Specification | TO-5097LCS |
|---|---|
| Deflection Angle | 245 ° |
| Diameter - Outside | 0.38 in |
| Finish | None |
| Leg Length | 1 in |
| Mandrel Diameter | 0.25 in |
| Material | Music Wire |
| Number of Coils | 7.75 |
| Wind Direction | Left |
| Wire Diameter | 0.03 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
