PSAW36I-14-B2

Active

TT Electronics/Power Partners Inc.

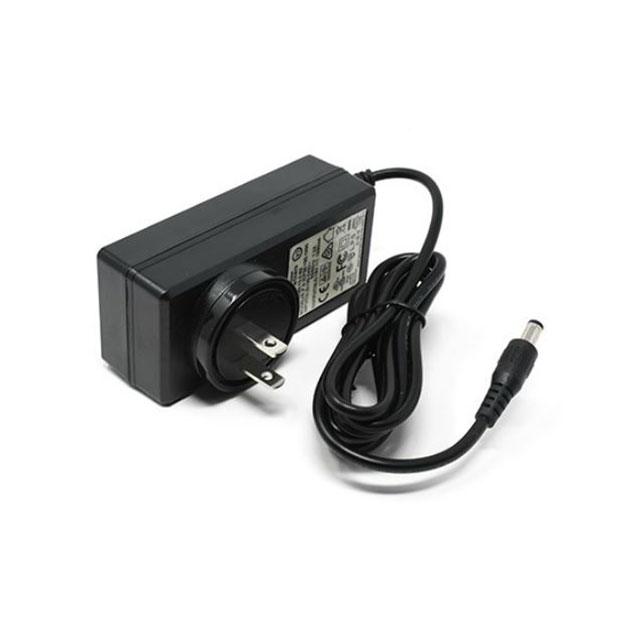

AC/DC WALL MOUNT ADAPTER 24V 36W

Search across all available documentation for this part.

Active

TT Electronics/Power Partners Inc.

AC/DC WALL MOUNT ADAPTER 24V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	PSAW36I-14-B2

Applications	ITE (Commercial)
Approval Agency	cULus, CCC, KC, CB, CE, FCC
Cord Length	47 "
Cord Length	1.2 m
Current - Output (Max) [Max]	1.5 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Included)
Input Type	Multi-Blade (Single Blade Included)
No Load Power Consumption	100 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Output Connector [diameter]	2.5 mm, 5.5 mm
Output Connector [x]	10 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	97.3 mm
Size / Dimension [x]	3.83 "
Size / Dimension [y]	45.2 mm
Size / Dimension [y]	1.78 "
Size / Dimension [z]	31 mm
Size / Dimension [z]	1.22 in
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

AC/DC WALL MOUNT ADAPTER 24V 36W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Polarization	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Form	Voltage - Output	Applications	Standard Number	Input Connector	Approval Agency	Output Connector [diameter]	Output Connector [x]	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption	Power (Watts)	Input Type	Region Utilized	Current - Output (Max) [Max]
TT Electronics/Power Partners Inc. PSAW36I-14-B2	31 mm	1.22 in	45.2 mm	97.3 mm	3.83 "	1.78 "	Positive Center	Level VI	60 °C	0 °C	Wall Mount (Class II)	24 V	ITE (Commercial)	62368-1	Multi-Blade (Included)	CB, CCC, CE, cULus, FCC, KC	2.5 mm, 5.5 mm	10 mm	47 "	1.2 m	90 VAC	264 VAC	100 mW	36 W	Multi-Blade (Single Blade Included)	International	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 36 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Single Blade Included) Input
