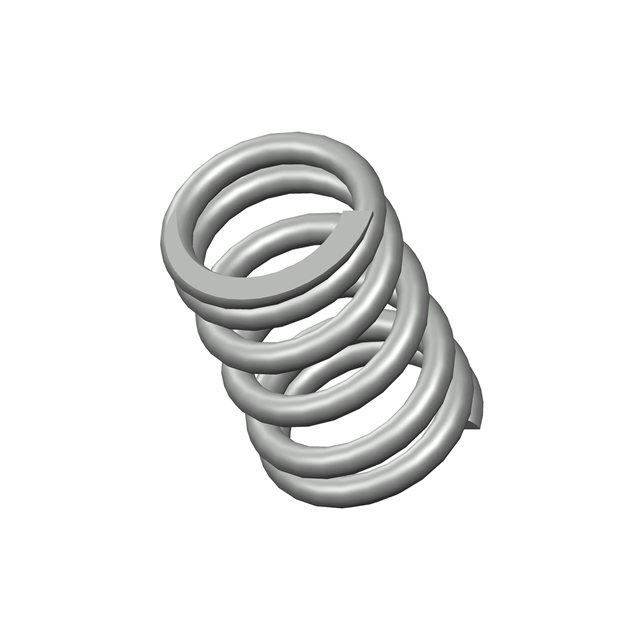

3566CS
ActiveCentury Spring Corp
COMP O= .250,L= .38,W= .035
3566CS
ActiveCentury Spring Corp
COMP O= .250,L= .38,W= .035
Description
General part information
3566CS
COMP O= .250,L= .38,W= .035
Technical Specifications
Parameters and characteristics for this part
| Specification | 3566CS |
|---|---|
| Diameter - Inside | 0.18 in |
| Diameter - Outside | 0.25 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 0.38 in |
| Material | Music Wire |
| Rate (lbs/in) | 54 lbs/in |
| Type | Compression |
| Wire Diameter | 0.035 in |
