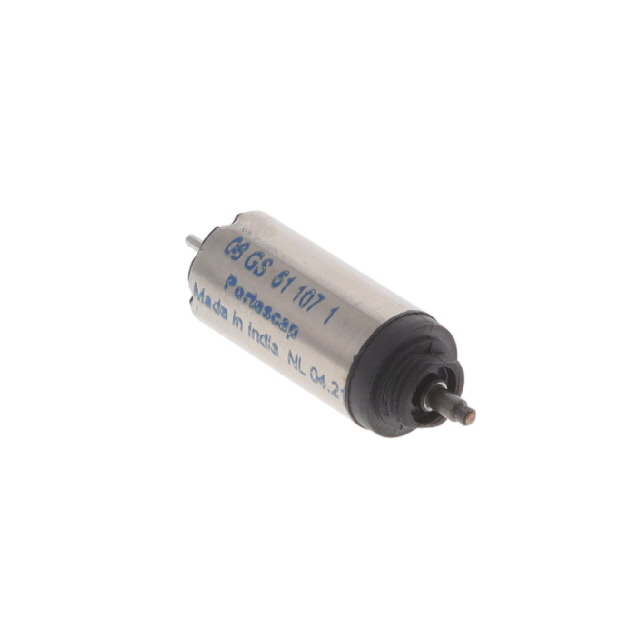

08GS61-107.1

Active

Portescap

STANDARD MOTOR 9500 RPM 2V

Search across all available documentation for this part.

Active

Portescap

STANDARD MOTOR 9500 RPM 2V

Technical Specifications

Parameters and characteristics for this part

STANDARD MOTOR 9500 RPM 2V

Part	Voltage - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Motor Type	Operating Temperature [Min]	Operating Temperature [Max]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Weight	Weight	Termination Style	Type	RPM	Power - Rated	Function
Portescap 08GS61-107.1	2 VDC	0.059 in	1.5 mm	Brushed	-30 ░C	85 °C	0.197 in	5 mm	0.46 mNm	0.065 oz-in	8 mm	Round	0.315 "	4.08 g	0.009 lb	Solder Tab	DC Motor	9500 RPM	500 mW	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 37.11

General part information

Brushed DC Motor Standard 9500 RPM 0.5W 2VDC
