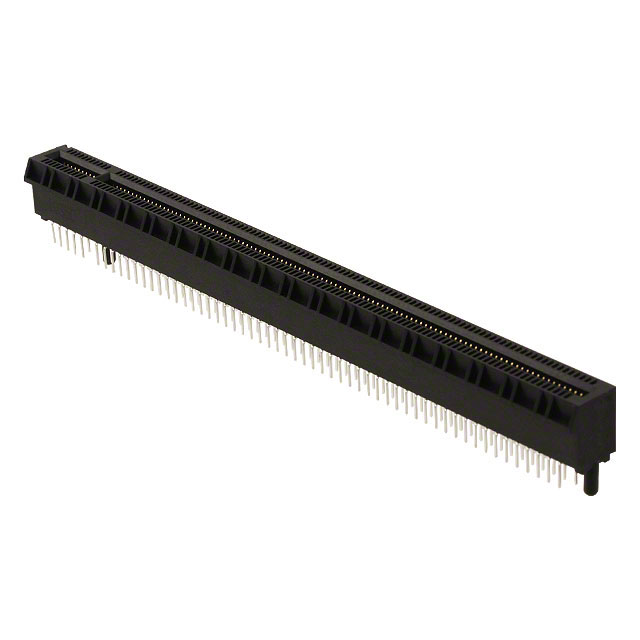

NWE115DHHN-T931

Obsolete

Sullins Connector Solutions

CONN PCI EXP FMALE 230POS 0.039

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN PCI EXP FMALE 230POS 0.039

Technical Specifications

Parameters and characteristics for this part

Part	Features	Contact Material	Read Out	Color	Termination	Pitch [x]	Pitch [x]	Number of Rows	Card Type	Contact Finish	Contact Finish Thickness	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Gender	Card Thickness	Card Thickness	Contact Type	Number of Positions
Sullins Connector Solutions NWE115DHHN-T931	Board Guide Locking Ramp	Phosphor Bronze	Dual	Black	Solder Staggered	0.039 in	1 mm	2	PCI Express™	Gold	Flash	Through Hole	85 °C	-55 °C	Nylon 4/6 Polyamide (PA46)	Female	0.062 in	1.57 mm	Cantilever	230

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

230 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black

Technical documentation and resources
