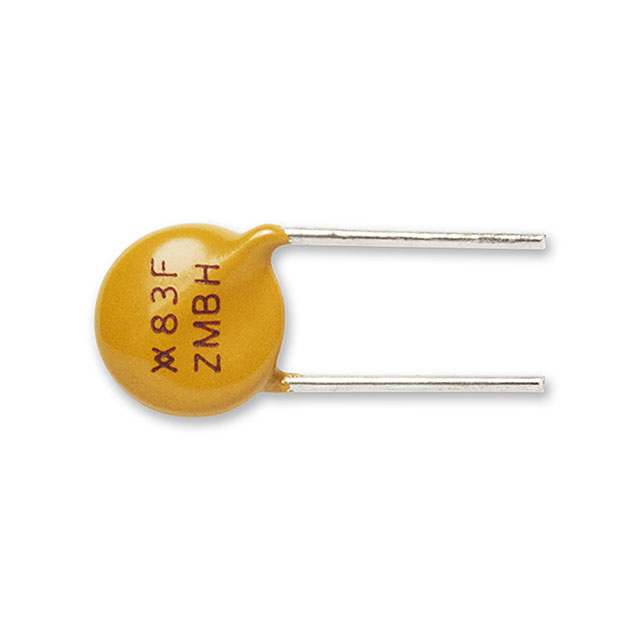

TRF250-183S-0.110
ActiveLITTELFUSE
PTC RESET FUSE 100V 183MA RADIAL
TRF250-183S-0.110
ActiveLITTELFUSE
PTC RESET FUSE 100V 183MA RADIAL
Description
General part information
TRF250-183S-0.110
Polymeric PTC Resettable Fuse 100V (250V Int) 183 mA Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | TRF250-183S-0.110 |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Current - Hold (Ih) (Max) | 183 mA |
| Current - Max | 10 A |
| Current - Trip (It) | 685 mA |
| Height - Seated (Max) | 0.374 in |
| Lead Spacing | 0.2 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) | 800 mOhms |
| Resistance - Post Trip (R1) (Max) | 3.4 Ohms |
| Size / Dimension Diameter | 0.295 in |
| Size / Dimension Thickness | 0.15 in |
| Time to Trip | 1.8 s |
| Type | Polymeric |
| Voltage - Max | 100 V |
| Voltage - Max (Int) | 250 V |
