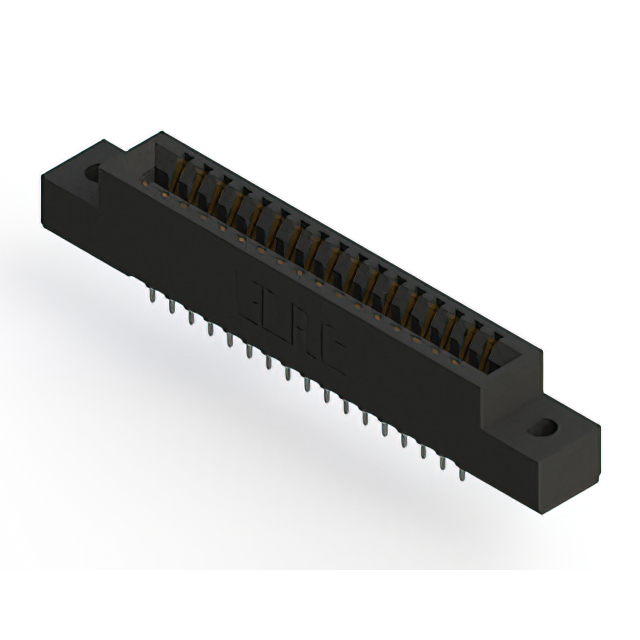

391-034-520-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 34POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-034-520-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 34POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-034-520-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
391-034 Series
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Gender | Color | Material - Insulation | Number of Positions | Contact Type | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Read Out | Pitch [x] | Pitch [x] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Termination | Termination Rows | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 34 | Female | Black | Polyester Thermoplastic | 34 | Semi Bellows | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Gold | Solder | 1 | Copper Alloy | |||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 34 | Female | Black | Polyester Thermoplastic | 34 | Semi Bellows | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Gold | Solder | 1 | Copper Alloy | |||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 34 | Female | Black | Polyester Thermoplastic | 34 | Semi Bellows | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Gold | Solder | 1 | Copper Alloy | 3.96 mm | 0.156 in | |
EDAC Inc. | Through Hole | -40 °C | 105 ░C | Female | Black | Polyester Thermoplastic | 34 | Semi Bellows | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Gold | Solder | 2 | Copper Alloy | 3.96 mm | 0.156 in | ||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 34 | Female | Black | Polyester Thermoplastic | 34 | Semi Bellows | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Gold | Solder | 1 | Copper Alloy | 3.25 mm | 0.128 " | |
EDAC Inc. | Through Hole | -40 °C | 105 ░C | Female | Black | Polyester Thermoplastic | 34 | Semi Bellows | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Gold | Solder | 2 | Copper Alloy | 3.25 mm | 0.128 " | ||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | Female | Black | Polyester Thermoplastic | 34 | Semi Bellows | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Gold | Solder | 2 | Copper Alloy | ||||
EDAC Inc. | Board Edge Straddle Mount | -40 °C | 105 ░C | Female | Black | Polyester Thermoplastic | 34 | Semi Bellows | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | Solder Eyelet(s) | 2 | Copper Alloy | Card Extender | ||||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | Female | Black | Polyester Thermoplastic | 34 | Semi Bellows | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Gold | Solder | 2 | Copper Alloy | Card Extender | |||
EDAC Inc. | Through Hole | -40 °C | 105 ░C | 34 | Female | Black | Polyester Thermoplastic | 34 | Semi Bellows | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Single | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Gold | Solder | 1 | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
391-034 Series
34 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
