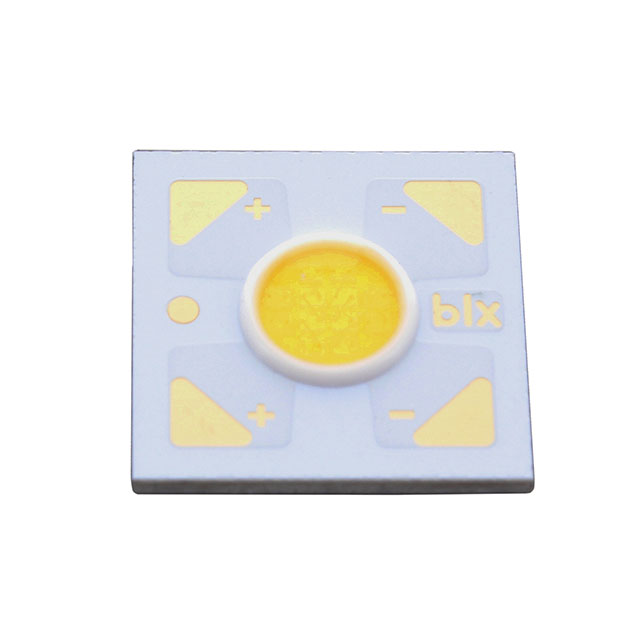

BXRH-57S0601-A-74

Active

BRIDGELUX

LED COB V4HD THRIVE WHT SQ 5700K

Search across all available documentation for this part.

Active

BRIDGELUX

LED COB V4HD THRIVE WHT SQ 5700K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRH-57S0601-A-74	BXRH-57 Series

CCT (K)	5700 K	5700 K
Color	Cool, White	Cool, White
Configuration	Square	Square
CRI (Color Rendering Index)	98	98
Current - Max [Max]	240 mA	240 - 960 mA
Current - Test	175 mA	175 - 350 mA
Height [z]	1.63 mm	1.63 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	4.5 mm	4.5 - 6.6 mm
Lumens/Watt @ Current - Test	106 lm/W	106 - 110 lm/W
Luminous Flux @ Current/Temperature	675 lm	675 - 1401 lm
Size / Dimension [x]	12.5 mm	12.5 mm
Size / Dimension [y]	12.5 mm	12.5 mm
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	36.4 V	18.2 - 36.4 V

LED COB V4HD THRIVE WHT SQ 5700K

Part	Color	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	CCT (K)	Height [z]	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Configuration	Light Emitting Surface (LES) [diameter]	Viewing Angle	Current - Test	Current - Max [Max]	Lens Type	Size / Dimension [x]	Size / Dimension [y]	Type
BRIDGELUX BXRH-57S0601-A-74	Cool, White	36.4 V	106 lm/W	5700 K	1.63 mm	98	675 lm	Square	4.5 mm	120 °	175 mA	240 mA	Flat	12.5 mm	12.5 mm	Chip On Board (COB)
BRIDGELUX BXRH-57S1001-B-74	Cool, White	36.4 V	110 lm/W	5700 K	1.63 mm	98	1401 lm	Square	6.6 mm	120 °	350 mA	480 mA	Flat			Chip On Board (COB)
BRIDGELUX BXRH-57S1001-G-73	Cool, White	18.2 V	110 lm/W	5700 K	1.63 mm	98	1401 lm	Square	6.6 mm	120 °		960 mA	Flat			Chip On Board (COB)
BRIDGELUX BXRH-57S1001-G-74	Cool, White	18.2 V	110 lm/W	5700 K	1.63 mm	98	1401 lm	Square	6.6 mm	120 °		960 mA	Flat			Chip On Board (COB)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.76

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) V4 HD Thrive™ Array White, Cool Square
