87922-1

Active

TE Connectivity AMP Connectors

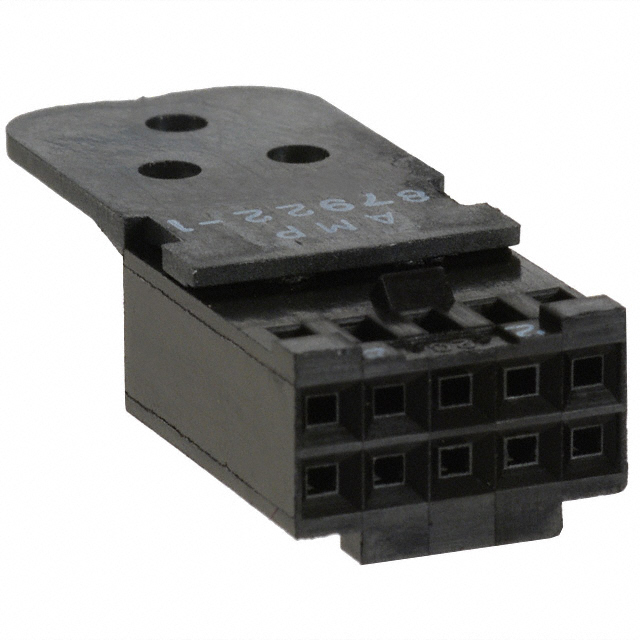

CONN RCPT HSG 10POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 10POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 10POS 2.54MM

Part	Note	Features	Insulation Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Color	Contact Type	Number of Rows	Contact Termination	Connector Type	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 87922-1	Contacts Not Included	Strain Relief	Thermoplastic	Locking Ramp	-65 ░C	105 ░C	10	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Male or Female	2	Crimp	Receptacle	Free Hanging (In-Line)
TE Connectivity AMP Connectors 87922-3	Contacts Not Included	Strain Relief	Thermoplastic	Locking Ramp	-65 ░C	105 ░C	14	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Male or Female	2	Crimp	Receptacle	Free Hanging (In-Line)
TE Connectivity AMP Connectors 87922-2	Contacts Not Included	Strain Relief	Thermoplastic	Locking Ramp	-65 ░C	105 ░C	12	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Male or Female	2	Crimp	Receptacle	Free Hanging (In-Line)
TE Connectivity AMP Connectors 87922-4	Contacts Not Included	Strain Relief	Thermoplastic	Locking Ramp	-65 ░C	105 ░C		0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Male or Female	2	Crimp	Receptacle	Free Hanging (In-Line)	16
TE Connectivity AMP Connectors 87922-5	Contacts Not Included	Strain Relief	Thermoplastic	Locking Ramp	-65 ░C	105 ░C	18	0.1 in	2.54 mm	2.54 mm	0.1 in	Black	Male or Female	2	Crimp	Receptacle	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
