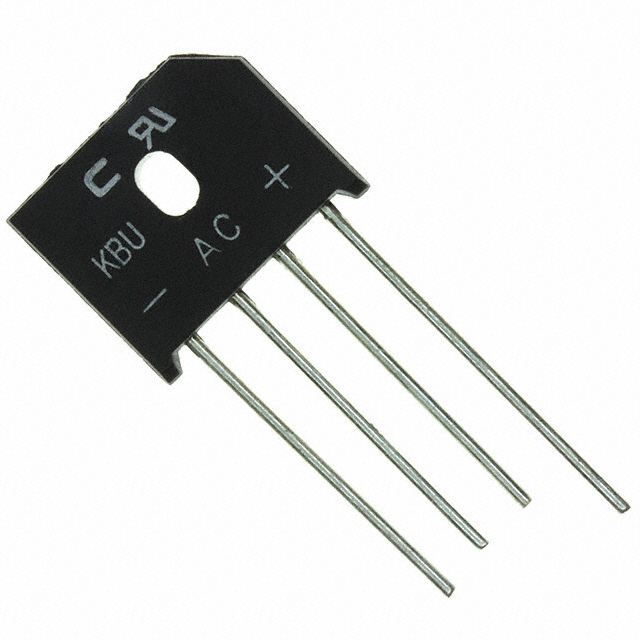

KBU2504-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 3.6A KBU

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 3.6A KBU

Technical Specifications

Parameters and characteristics for this part

Specification	KBU2504-G

Current - Average Rectified (Io)	3.6 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	KBU, 4-SIP
Supplier Device Package	KBU
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	400 V

BRIDGE RECT 1PHASE 400V 3.6A KBU

Part	Diode Type	Package / Case	Voltage - Peak Reverse (Max) [Max]	Current - Reverse Leakage @ Vr	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Current - Average Rectified (Io)	Technology	Voltage - Forward (Vf) (Max) @ If	Mounting Type
Comchip Technology KBU2504-G	Single Phase	4-SIP, KBU	400 V	10 µA	-55 °C	150 °C	KBU	3.6 A	Standard	1.1 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole KBU
