Description
General part information

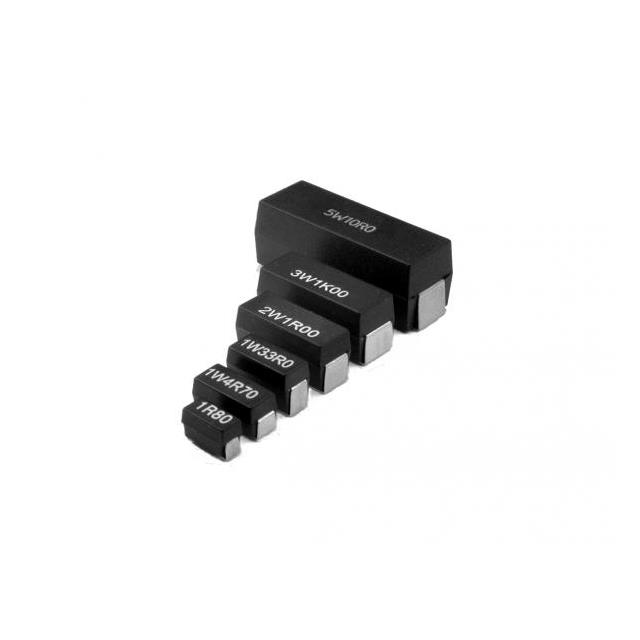

RWS5 82R F B
82 Ohms ±1% 5W Chip Resistor Nonstandard Pulse Withstanding Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | RWS5 82R F B |
|---|---|
| Composition | Wirewound |
| Features | Pulse Withstanding |
| Height - Seated (Max) | 0.33 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Power (Watts) | 5 W |
| Resistance | 82 Ohm |
| Size / Dimension Length | 0.799 in |
| Size / Dimension Width | 0.3 in |
| Temperature Coefficient | 20 ppm/¯C |
| Tolerance | 1 % |
