100023423
ActiveTelegartner Inc
BNC JCK STR BKHD SD/Z50
100023423
ActiveTelegartner Inc
BNC JCK STR BKHD SD/Z50
Description
General part information
100023423

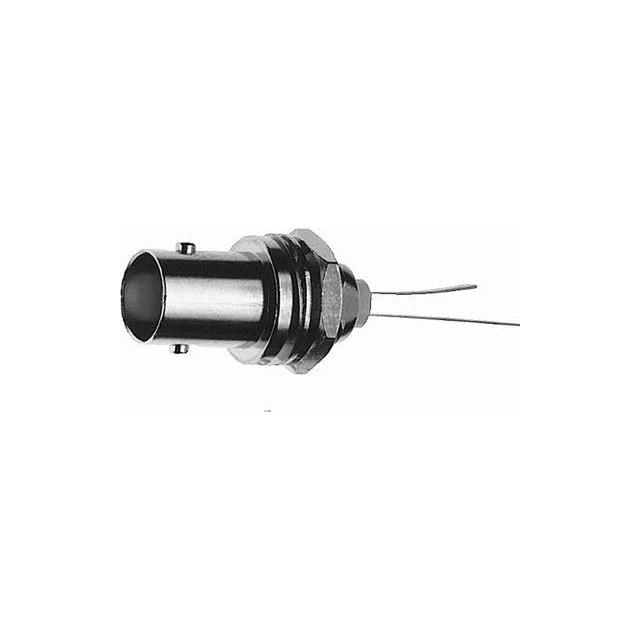

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023423 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polypropylene (PP) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 1 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
