289-128/003-000
ActiveWAGO Corporation

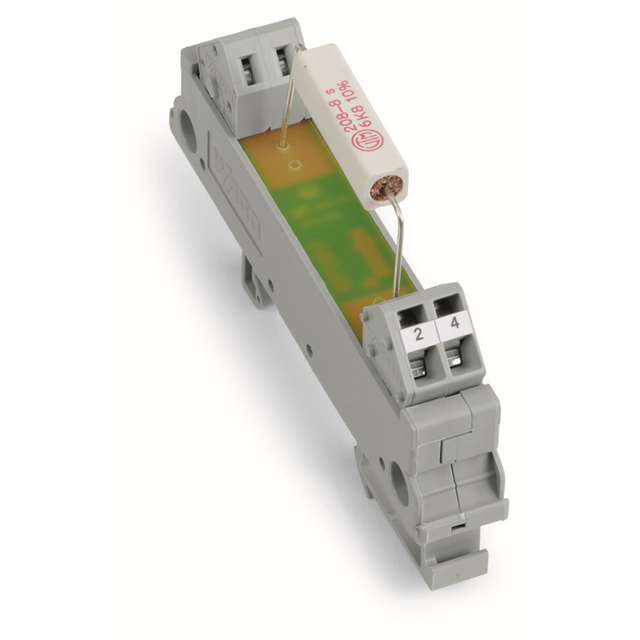

COMPONENT MODULE-R 1X 6K8
289-128/003-000
ActiveWAGO Corporation
COMPONENT MODULE-R 1X 6K8
Description
General part information
289-128/003-000
2 Position Interface Module Terminal Blocks - Screw Connection To Terminal Blocks - Screw Connection 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 289-128/003-000 |
|---|---|
| Control Side Connection | Terminal Blocks, Screw Connection |
| Features | Resistor |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Positions / Poles | 2 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Width | 0.512 in |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
