Description
General part information

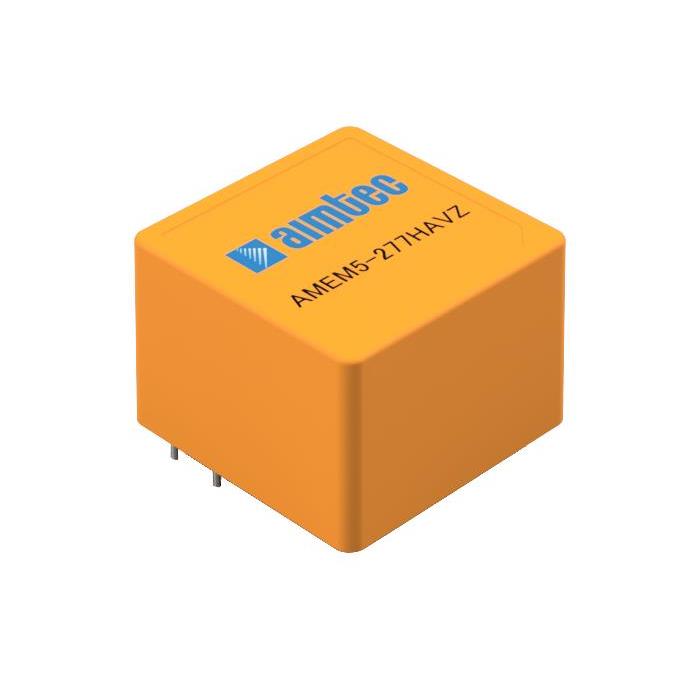

AMEM5-15S277HAVZ-ST
Enclosed AC DC Converters 1 Output 15V 85 ~ 305 VAC, 100 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEM5-15S277HAVZ-ST |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | cULus, cURus |
| Current - Output 1 | 333 mA |
| Efficiency | 81.5 % |
| Features | Universal Input, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 4.9 W |
| Size / Dimension Height | 1.04 in |
| Size / Dimension Length | 2.99 in |
| Size / Dimension Width | 1.24 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 100 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 15 V |
