BK/GMD-V-750-R
ActiveEaton - Electronics Division
FUSE GLASS 750MA 250VAC 5X20MM
BK/GMD-V-750-R
ActiveEaton - Electronics Division
FUSE GLASS 750MA 250VAC 5X20MM
Description
General part information
BK/GMD-V-750-R

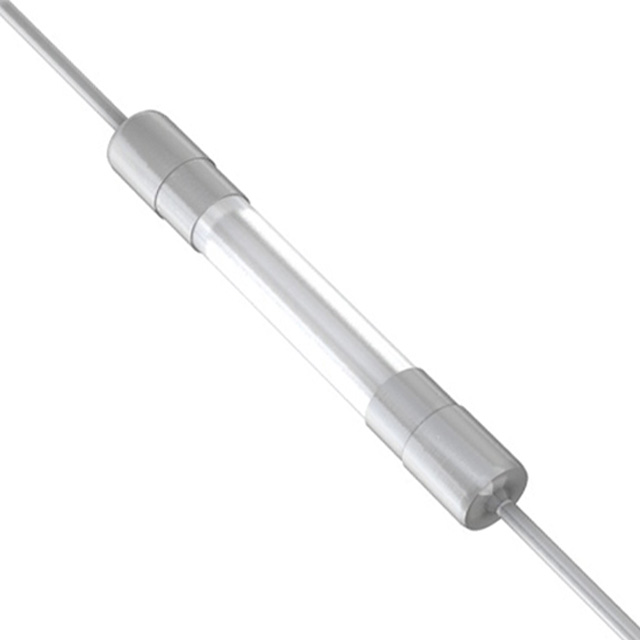

750 mA 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/GMD-V-750-R |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity | 35 A |
| Current Rating | 0.75 A |
| DC Cold Resistance | 0.4425 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 4.7 |
| Mounting Type | Through Hole |
| Package / Case Interfaces | Axial |
| Package Features | Axial |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Name | 5mm x 20mm |
| Package Width | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.218 in |
| Size / Dimension Length | 0.831 in |
| Voltage Rating - AC | 250 V |
