PN-1341-AC
ActiveBUD INDUSTRIES
PLASTIC ENCLOSURE, WALL MOUNT, POLYCARBONATE, 119.89 MM, 240.03 MM, 158.5 MM, IP68
PN-1341-AC
ActiveBUD INDUSTRIES
PLASTIC ENCLOSURE, WALL MOUNT, POLYCARBONATE, 119.89 MM, 240.03 MM, 158.5 MM, IP68
Description
General part information
PN-1341-AC

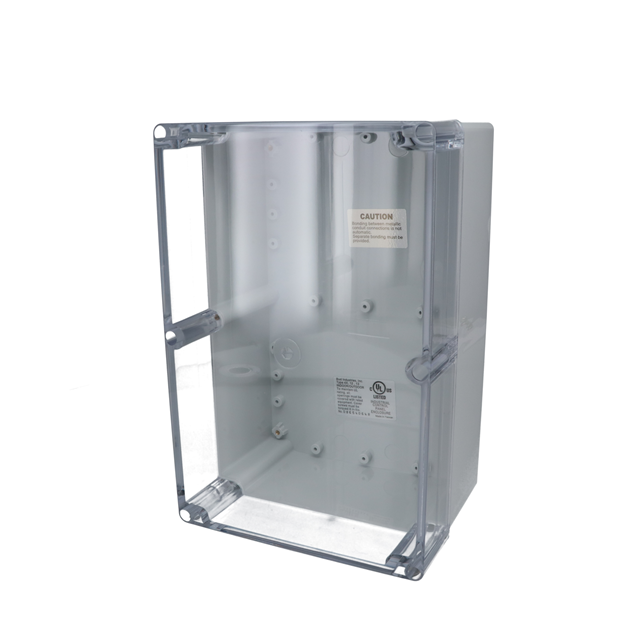

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 9.450" L x 6.240" W (240.03mm x 158.50mm) X 4.720" (119.89mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PN-1341-AC |
|---|---|
| Area (L x W) | 59 in² |
| Color | Clear Cover/Door, Gray |
| Container Type | Box |
| Design | Cover Included |
| Height | 4.72 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 HB |
| Ratings | 4, 6P, 2, NEMA 1, 12, 13, 6, UL-508, IP68, 4X |
| Size / Dimension Length | 9.45 in |
| Size / Dimension Width | 6.24 in |
| Thickness | 0.12 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
