Phoenix Contact

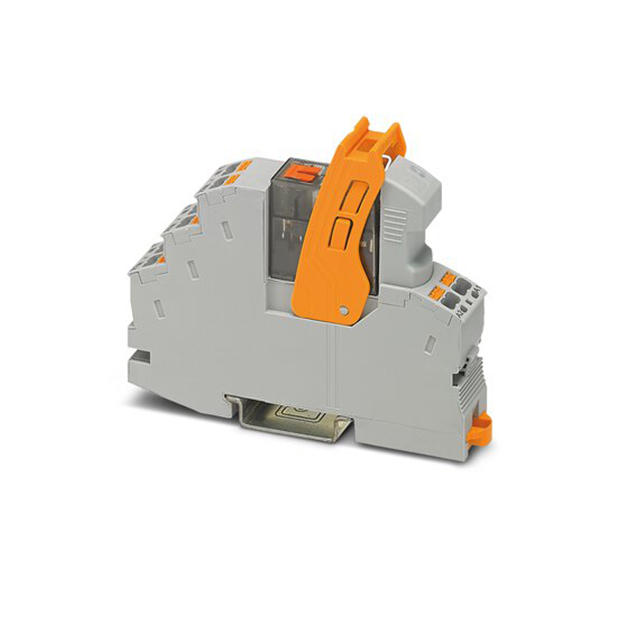

RELAY GEN PURPOSE DPDT 8.5A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8.5A 230V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2905292	29052 Series

Approval Agency	CSA	CSA
Coil Current	3.5 mA	3.5 - 18 mA
Coil Resistance	65.71 kOhms	1.33 - 65.71 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	230 VAC	24 - 230 VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C), SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	8.5 A	8.5 - 10 A
Features	Lighted Indicator, Varistor, Socket Included	Lighted Indicator, Varistor, Socket Included, Diode
Mounting Type	DIN Rail	DIN Rail
Operate Time	10 ms	9 - 10 ms
Operating Temperature [Max]	45 °C	45 - 60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	10 - 20 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Spring Terminal	Spring Terminal

RELAY GEN PURPOSE DPDT 8.5A 230V

Part	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Approval Agency	Relay Type	Mounting Type	Contact Rating (Current)	Release Time	Coil Current	Features	Termination Style	Contact Material	Operate Time	Coil Resistance	Contact Form	Coil Voltage
Phoenix Contact 2905292	250 VAC, 250 VDC	45 °C	-40 °C	Non Latching	CSA	General Purpose	DIN Rail	8.5 A	20 ms	3.5 mA	Lighted Indicator, Socket Included, Varistor	Spring Terminal	Silver Nickel (AgNi)	10 ms	65.71 kOhms	DPDT (2 Form C)	230 VAC
Phoenix Contact 2905289	250 VAC, 250 VDC	60 °C	-40 °C	Non Latching	CSA	General Purpose	DIN Rail	10 A	10 ms	18 mA	Diode, Lighted Indicator, Socket Included	Spring Terminal	Silver Nickel (AgNi)	9 ms	1.33 kOhms	SPDT (1 Form C)	24 VDC
Phoenix Contact 2905291	250 VAC, 250 VDC	60 °C	-40 °C	Non Latching	CSA	General Purpose	DIN Rail	8.5 A	10 ms	18 mA	Diode, Lighted Indicator, Socket Included	Spring Terminal	Silver Nickel (AgNi)	9 ms	1.33 kOhms	DPDT (2 Form C)	24 VDC
Phoenix Contact 2905290	250 VAC, 250 VDC	50 °C	-40 °C	Non Latching	CSA	General Purpose	DIN Rail	10 A	20 ms	3.5 mA	Lighted Indicator, Socket Included, Varistor	Spring Terminal	Silver Nickel (AgNi)	10 ms	65.71 kOhms	SPDT (1 Form C)	230 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) 230VAC Coil DIN Rail
