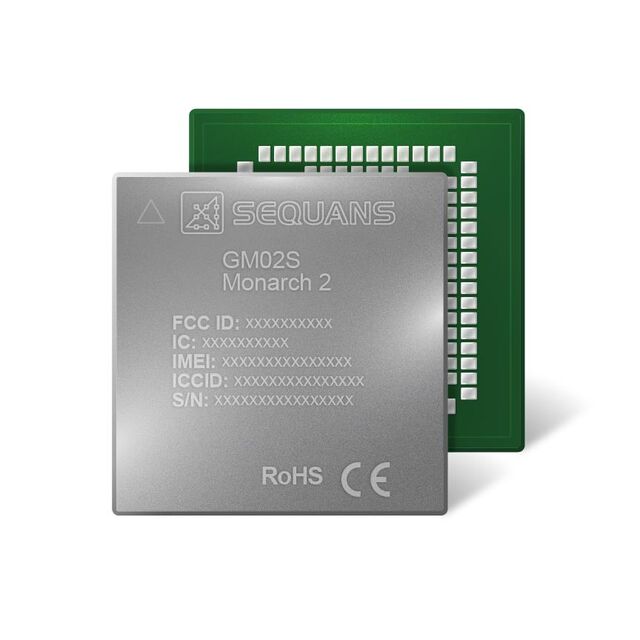

GM02S-GM02RBAQRF

Active

Sequans Communications

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Active

Sequans Communications

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GM02S-GM02RBAQRF	GM02S Series

Antenna Type	Antenna Not Included	Antenna Not Included, Integrated, Trace
Data Rate	1.1 Mbps	1.1 Mbps
Frequency [Max]	2.2 GHz	2.2 GHz
Frequency [Min]	617 MHz	617 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	LGA Module	LGA Module
Power - Output	23 dBmW	23 dBmW
Protocol	LTE	LTE, LTE Cat NB1, LTE Cat M1, LTE Cat NB2, LTE-M/NB-IoT
RF Family/Standard	Cellular	Cellular
Serial Interfaces	GPIO, SPI, I2C, JTAG, ADC, UART	GPIO, SPI, I2C, JTAG, ADC, UART
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	2.2 V	2.2 V

RF TXRX MODULE CELL SMD

Part	Antenna Type	Power - Output	Frequency [Max]	Frequency [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Serial Interfaces	Protocol	RF Family/Standard	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate
Sequans Communications GM02S-GM02RBAQRI	Antenna Not Included	23 dBmW	2.2 GHz	617 MHz	5.5 V	2.2 V	Surface Mount	ADC, GPIO, I2C, JTAG, SPI, UART	LTE	Cellular	LGA Module	85 °C	-40 °C	1.1 Mbps
Sequans Communications GM02SP	Integrated, Trace	23 dBmW	2.2 GHz	617 MHz	5.5 V	2.2 V	Surface Mount	ADC, GPIO, I2C, JTAG, SPI, UART	LTE Cat M1, LTE Cat NB1, LTE Cat NB2, LTE-M/NB-IoT	Cellular	LGA Module	85 °C	-40 °C	1.1 Mbps
Sequans Communications GM02S-GM02RBAQRF	Antenna Not Included	23 dBmW	2.2 GHz	617 MHz	5.5 V	2.2 V	Surface Mount	ADC, GPIO, I2C, JTAG, SPI, UART	LTE	Cellular	LGA Module	85 °C	-40 °C	1.1 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 13.37

General part information

Cellular LTE Transceiver Module 617MHz ~ 2.2GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
