PK504-160-160-3.5

Active

Shiu Li Technology Co., Ltd.

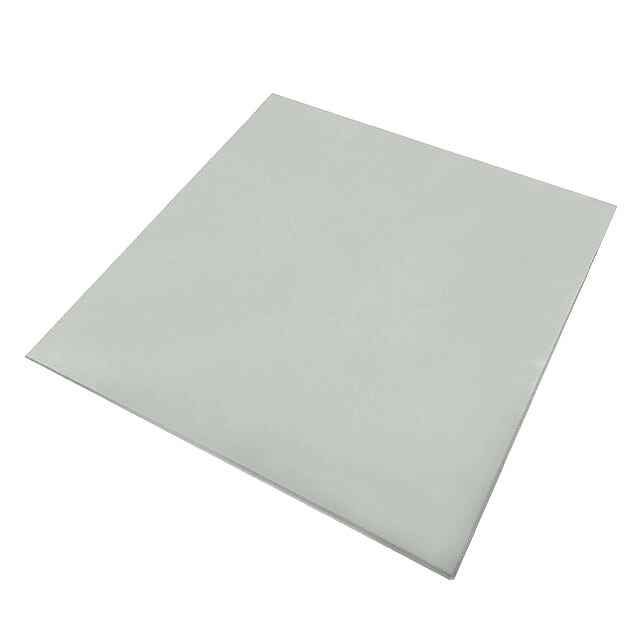

THERM PAD 160MMX160MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

PK504-160-160-3.5

Active

Shiu Li Technology Co., Ltd.

THERM PAD 160MMX160MM GRAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 63.23
		10	$ 56.10
		25	$ 53.48
		50	$ 51.58
		100	$ 49.74

Description

General part information

PK504 Series

Thermal Pad Gray 160.00mm x 160.00mm Square Tacky - Both Sides

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PK504-160-160-3.5	PK504 Series

Adhesive	Tacky - Both Sides	Tacky - Both Sides
Color	Gray	Gray
Outline [x]	160 mm	160 - 320 mm
Outline [y]	160 mm	160 - 320 mm
Shape	Square	Square
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Storage/Refrigeration Temperature	Room Temperature	Room Temperature
Thermal Conductivity	5 W/m-K	5 W/m-K
Thickness	0.138 in	0.02 - 0.197 "
Thickness	3.5 mm	0.508 - 5 mm
Thickness	-	4.5 mm
Thickness	-	0.177 in
Type	Gap Filler Pad, Sheet	Gap Filler Pad, Sheet

PK504 Series

THERM PAD 320X320MM GRAY

Part	Shelf Life	Thickness	Thickness	Type	Outline [x]	Outline [y]	Thermal Conductivity	Adhesive	Shape	Shelf Life Start	Storage/Refrigeration Temperature	Color
Shiu Li Technology Co., Ltd. PK504-320-320-5.0	120 Months	0.197 "	5 mm	Gap Filler Pad, Sheet	320 mm	320 mm	5 W/m-K	Tacky - Both Sides	Square	Date of Shipment	Room Temperature	Gray
Shiu Li Technology Co., Ltd. PK504-160-160-3.5	120 Months	0.138 in	3.5 mm	Gap Filler Pad, Sheet	160 mm	160 mm	5 W/m-K	Tacky - Both Sides	Square	Date of Shipment	Room Temperature	Gray
Shiu Li Technology Co., Ltd. PK504-160-160-1.5	120 Months	0.0591 "	1.5 mm	Gap Filler Pad, Sheet	160 mm	160 mm	5 W/m-K	Tacky - Both Sides	Square	Date of Shipment	Room Temperature	Gray
Shiu Li Technology Co., Ltd. PK504-320-320-2.5	120 Months	0.098 in	2.489 mm	Gap Filler Pad, Sheet	320 mm	320 mm	5 W/m-K	Tacky - Both Sides	Square	Date of Shipment	Room Temperature	Gray
Shiu Li Technology Co., Ltd. PK504-160-160-2.5	120 Months	0.098 in	2.489 mm	Gap Filler Pad, Sheet	160 mm	160 mm	5 W/m-K	Tacky - Both Sides	Square	Date of Shipment	Room Temperature	Gray
Shiu Li Technology Co., Ltd. PK504-320-320-0.5	120 Months	0.02 in	0.508 mm	Gap Filler Pad, Sheet	320 mm	320 mm	5 W/m-K	Tacky - Both Sides	Square	Date of Shipment	Room Temperature	Gray
Shiu Li Technology Co., Ltd. PK504-320-320-4.0	120 Months	0.157 in	4 mm	Gap Filler Pad, Sheet	320 mm	320 mm	5 W/m-K	Tacky - Both Sides	Square	Date of Shipment	Room Temperature	Gray
Shiu Li Technology Co., Ltd. PK504-160-160-3.0	120 Months	0.118 in	3 mm	Gap Filler Pad, Sheet	160 mm	160 mm	5 W/m-K	Tacky - Both Sides	Square	Date of Shipment	Room Temperature	Gray
Shiu Li Technology Co., Ltd. PK504-320-320-1.0	120 Months	0.039 in	0.991 mm	Gap Filler Pad, Sheet	320 mm	320 mm	5 W/m-K	Tacky - Both Sides	Square	Date of Shipment	Room Temperature	Gray
Shiu Li Technology Co., Ltd. PK504-320-320-3.5	120 Months	0.138 in	3.5 mm	Gap Filler Pad, Sheet	320 mm	320 mm	5 W/m-K	Tacky - Both Sides	Square	Date of Shipment	Room Temperature	Gray
