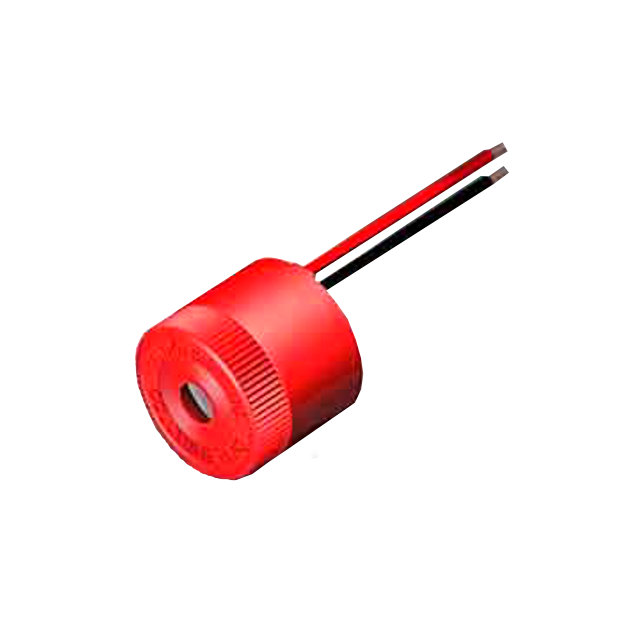

M-80W

Active

Floyd Bell Inc

BUZZER PIEZO 26.2MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 26.2MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	M-80W

Approval Agency	UR, UL
Current - Supply [Max]	50 mA
Current - Supply [Min]	10 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.9 kHz
Height - Seated (Max) [Max] [z]	23.11 mm
Height - Seated (Max) [Max] [z]	0.91 "
Ingress Protection	IP68 - Dust Tight, Waterproof
Input Type	DC
Operating Mode	Single Tone
Port Location	Top
Size / Dimension	26.2 mm
Size / Dimension [diameter]	1.031 "
Sound Pressure Level (SPL)	103 dB
Technology	Piezo
Termination	Wire Leads
Voltage Range [Max]	15 V
Voltage Range [Min]	5 VDC

BUZZER PIEZO 26.2MM PNL MNT

Part	Sound Pressure Level (SPL)	Ingress Protection	Technology	Termination	Voltage Range [Min]	Voltage Range [Max]	Operating Mode	Current - Supply [Max]	Current - Supply [Min]	Port Location	Driver Circuitry	Frequency	Size / Dimension	Size / Dimension [diameter]	Approval Agency	Input Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Floyd Bell Inc M-80W	103 dB	IP68 - Dust Tight, Waterproof	Piezo	Wire Leads	5 VDC	15 V	Single Tone	50 mA	10 mA	Top	Indicator, Internally Driven	2.9 kHz	26.2 mm	1.031 "	UL, UR	DC	23.11 mm	0.91 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.34

General part information

Buzzers Indicator, Internally Driven Piezo 10 ~ 50mA 2.9kHz 103dB @ 15V, 61cm Panel Mount Wire Leads
