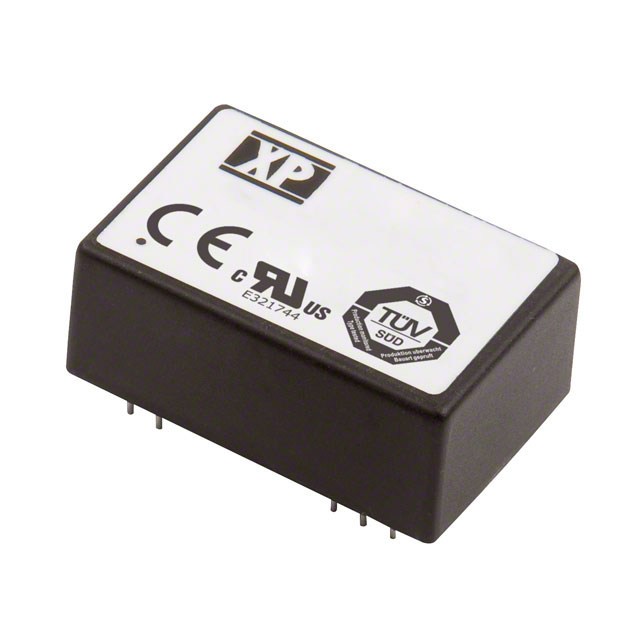

JHM1012D05
ActiveXP POWER
DC DC CONVERTER +/-5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JHM1012D05
ActiveXP POWER
DC DC CONVERTER +/-5V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JHM1012D05 |
|---|---|
| Applications | Medical |
| Current - Output (Max) | 1 A |
| Current - Output (Max) | 1 A |
| Efficiency | 84 % |
| Features | SCP, UVLO, OVP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9 PC Pad |
| Package / Case | 24-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 56.60 | |
| 5 | $ 54.90 | |||
| 10 | $ 53.20 | |||
| 25 | $ 50.94 | |||
| 100 | $ 47.54 | |||
Description
General part information
JHM1012D05
Isolated Module DC DC Converter 2 Output 5V -5V 1A, 1A 9V - 18V Input
