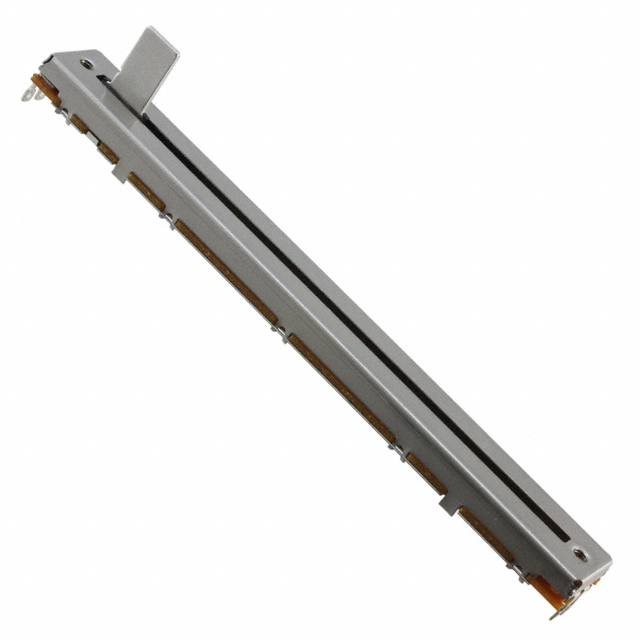

PS100-2B1AR10K
ActiveTT Electronics/BI
SLIDE POT 10K OHM 0.125W TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PS100-2B1AR10K
ActiveTT Electronics/BI
SLIDE POT 10K OHM 0.125W TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PS100-2B1AR10K | PS100 Series |
|---|---|---|
| Adjustment Type | Top | Top |
| Fader Type | Dual | Dual |
| Mounting Type | Through Hole | Through Hole |
| Power (Watts) | 0.125 W | 0.125 W |
| Power (Watts) | 0.125 W | 0.125 - 0.25 W |
| Power (Watts) | - | 250 mW |
| Resistance | 10000 Ohms | 5 - 10000 kOhms |
| Size / Dimension | - | 8.4 mm |
| Size / Dimension | - | Rectangular |
| Size / Dimension | - | 8 mm |
| Size / Dimension [x] | 128 mm | 127.8 - 128 mm |
| Size / Dimension [x] | 5.039 " | 5.031 - 5.039 " |
| Size / Dimension [y] | 16 mm | 16 mm |
| Size / Dimension [y] | 0.63 in | 0.331 - 0.63 in |
| Size / Dimension [z] | 0.315 " | 0.315 " |
| Size / Dimension [z] | 8 mm | 8 mm |
| Tolerance | 20 % | 20 % |
| Travel Range | 100 mm | 100 mm |
PS100 Series
SLIDE POT 5KOHM 0.125W TOP 100MM
| Part | Resistance | Travel Range | Tolerance | Power (Watts) | Power (Watts) | Adjustment Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Fader Type | Mounting Type | Power (Watts) | Size / Dimension [y] | Size / Dimension | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI PS100-2B1AR5K | 5 kOhms | 100 mm | 20 % | 0.125 W | 0.125 W | Top | 16 mm | 0.63 in | 128 mm | 5.039 " | 0.315 " | 8 mm | Dual | Through Hole | ||||
TT Electronics/BI PS100-1B1BR100K | 100 kOhms | 100 mm | 20 % | 0.25 W | Top | 0.331 " | 127.8 mm | 5.031 in | 0.315 " | Dual | Through Hole | 250 mW | 8.4 mm | Rectangular | 8 mm | |||
TT Electronics/BI PS100-1B1BR500K | 500 Ohms | 100 mm | 20 % | 0.25 W | Top | 0.331 " | 127.8 mm | 5.031 in | 0.315 " | Dual | Through Hole | 250 mW | 8.4 mm | Rectangular | 8 mm | |||
TT Electronics/BI PS100-1B1BR500 | 500 Ohms | 100 mm | 20 % | 0.25 W | Top | 0.331 " | 127.8 mm | 5.031 in | 0.315 " | Dual | Through Hole | 250 mW | 8.4 mm | Rectangular | 8 mm | |||
TT Electronics/BI PS100-2B1BR100K | 100 kOhms | 100 mm | 20 % | 0.25 W | Top | 16 mm | 0.63 in | 128 mm | 5.039 " | 0.315 " | 8 mm | Dual | Through Hole | 250 mW | ||||
TT Electronics/BI PS100-1B1BR1K | 1000 Ohms | 100 mm | 20 % | 0.25 W | Top | 0.331 " | 127.8 mm | 5.031 in | 0.315 " | Dual | Through Hole | 250 mW | 8.4 mm | Rectangular | 8 mm | |||
TT Electronics/BI PS100-1B1CR10K | 10000 Ohms | 100 mm | 20 % | 0.125 W | 0.125 W | Top | 0.331 " | 127.8 mm | 5.031 in | 0.315 " | Dual | Through Hole | 8.4 mm | Rectangular | 8 mm | |||
TT Electronics/BI PS100-1B1BR50K | 50 kOhms | 100 mm | 20 % | 0.25 W | Top | 0.331 " | 127.8 mm | 5.031 in | 0.315 " | Dual | Through Hole | 250 mW | 8.4 mm | Rectangular | 8 mm | |||
TT Electronics/BI PS100-2B1BR500 | 500 Ohms | 100 mm | 20 % | 0.25 W | Top | 16 mm | 0.63 in | 128 mm | 5.039 " | 0.315 " | 8 mm | Dual | Through Hole | 250 mW | ||||
TT Electronics/BI PS100-2B1AR10K | 10000 Ohms | 100 mm | 20 % | 0.125 W | 0.125 W | Top | 16 mm | 0.63 in | 128 mm | 5.039 " | 0.315 " | 8 mm | Dual | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.72 | |
| 10 | $ 7.45 | |||
| 25 | $ 6.62 | |||
| 40 | $ 6.07 | |||
| 80 | $ 5.51 | |||
| 240 | $ 4.41 | |||
| 480 | $ 4.27 | |||
| 960 | $ 4.00 | |||
Description
General part information
PS100 Series
10 kOhms 0.125W, 1/8W Through Hole Slide Potentiometer Top Adjustment Type
