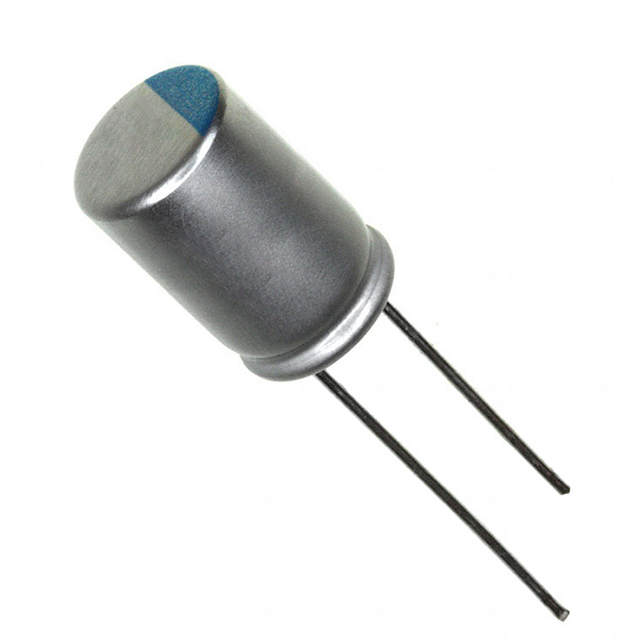

476ALG050MFBJ
ActiveCornell Dubilier Knowles
CAP ALUM POLY 47UF 20% 50V TH
476ALG050MFBJ
ActiveCornell Dubilier Knowles
CAP ALUM POLY 47UF 20% 50V TH
Description
General part information
476ALG050MFBJ
47 µF 50 V Aluminum - Polymer Capacitors Radial, Can 27mOhm 2000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 476ALG050MFBJ |
|---|---|
| Applications | Automotive |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 27 mOhm |
| Height - Seated (Max) | 0.532 in |
| Lead Spacing | 0.138 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Ripple Current | 2.7 A, 135 mA |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
