HEG.1K.308.CLLP
ActiveLEMO

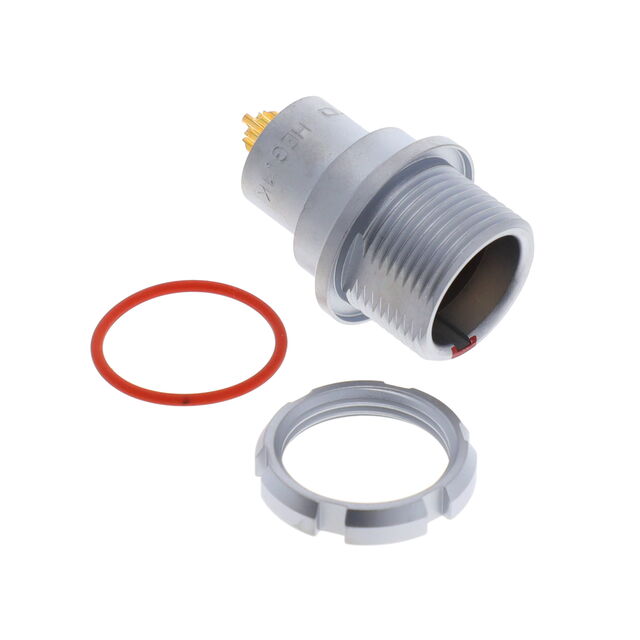

CONN RCPT FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HEG.1K.308.CLLP
ActiveLEMO
CONN RCPT FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HEG.1K.308.CLLP | HEG.1K Series |
|---|---|---|
| Applications | Military, Aviation | Military, Aviation |
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 5 A | 1.5 - 15 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Potted | Vacuumtight, Potted |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions | 8 | 2 - 14 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 308 | 302 - 316 |
| Shielding | Shielded | Shielded |
| Termination | - | Solder |
HEG.1K Series
CONN RCPT FMALE 16POS GOLD SLDR
| Part | Number of Positions | Applications | Connector Type | Contact Finish - Mating | Fastening Type | Primary Material | Insert Material | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Mounting Feature | Contact Material | Ingress Protection | Features | Orientation | Material Flammability Rating | Shell Finish | Termination | Shell Size - Insert | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Shell Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO HEG.1K.316.CLNPV | 16 | Aviation, Military | Receptacle, Female Sockets | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Silver | 59 Áin | 1.5 Ám | 1.5 A | Bulkhead - Front Side Nut | Bronze | IP68 - Dust Tight, Waterproof | Potted, Vacuumtight | G | UL94 V-0 | Chrome | Solder | 316 | Panel Mount, Through Hole | 100 °C | -20 C | Shielded | Brass | |
LEMO HEG.1K.316.KLNP | 16 | Aviation, Military | Receptacle, Female Sockets | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Black | 59 Áin | 1.5 Ám | 1.5 A | Bulkhead - Front Side Nut | Bronze | IP68 - Dust Tight, Waterproof | Potted | G | UL94 V-0 | Solder | 316 | Panel Mount, Through Hole | 100 °C | -20 C | Shielded | Brass | ||
LEMO HEG.1K.310.CLLPV | Aviation, Military | Receptacle, Female Sockets | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Silver | 59 Áin | 1.5 Ám | 2.5 A | Bulkhead - Front Side Nut | Bronze | IP68 - Dust Tight, Waterproof | Potted, Vacuumtight | G | UL94 V-0 | Chrome | 310 | 100 °C | -20 C | Shielded | Brass | 10 | |||
LEMO HEG.1K.304.CLLPV | Aviation, Military | Receptacle, Female Sockets | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Silver | 59 Áin | 1.5 Ám | 10 A | Bulkhead - Front Side Nut | Bronze | IP68 - Dust Tight, Waterproof | Potted, Vacuumtight | G | UL94 V-0 | Chrome | 304 | 100 °C | -20 C | Shielded | Brass | 4 | |||
LEMO HEG.1K.307.CLNP | Aviation, Military | Receptacle, Female Sockets | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Silver | 59 Áin | 1.5 Ám | 7 A | Bulkhead - Front Side Nut | Bronze | IP68 - Dust Tight, Waterproof | Potted | G | UL94 V-0 | Chrome | Solder | 307 | Panel Mount, Through Hole | 100 °C | -20 C | Shielded | Brass | 7 | |
LEMO HEG.1K.314.CLLP | Aviation, Military | Receptacle, Female Sockets | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Silver | 59 Áin | 1.5 Ám | 2 A | Bulkhead - Front Side Nut | Bronze | IP68 - Dust Tight, Waterproof | Potted | G | UL94 V-0 | Chrome | 314 | 100 °C | -20 C | Shielded | Brass | 14 | |||
LEMO HEG.1K.314.CLLPV | Aviation, Military | Receptacle, Female Sockets | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Silver | 59 Áin | 1.5 Ám | 2 A | Bulkhead - Front Side Nut | Bronze | IP68 - Dust Tight, Waterproof | Potted, Vacuumtight | G | UL94 V-0 | Chrome | 314 | 100 °C | -20 C | Shielded | Brass | 14 | |||
LEMO HEG.1K.316.KLLP | 16 | Aviation, Military | Receptacle, Female Sockets | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Black | 59 Áin | 1.5 Ám | 1.5 A | Bulkhead - Front Side Nut | Bronze | IP68 - Dust Tight, Waterproof | Potted | G | UL94 V-0 | 316 | 100 °C | -20 C | Shielded | Brass | ||||
LEMO HEG.1K.303.CLLP | Aviation, Military | Receptacle, Female Sockets | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Silver | 59 Áin | 1.5 Ám | 12 A | Bulkhead - Front Side Nut | Bronze | IP68 - Dust Tight, Waterproof | Potted | G | UL94 V-0 | Chrome | 303 | 100 °C | -20 C | Shielded | Brass | ||||
LEMO HEG.1K.308.CLLP | Aviation, Military | Receptacle, Female Sockets | Gold | Push-Pull | Metal | Polyetheretherketone (PEEK) | Silver | 59 Áin | 1.5 Ám | 5 A | Bulkhead - Front Side Nut | Bronze | IP68 - Dust Tight, Waterproof | Potted | G | UL94 V-0 | Chrome | 308 | 100 °C | -20 C | Shielded | Brass | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 85.04 | |
Description
General part information
HEG.1K Series
8 Position Circular Connector Receptacle, Female Sockets Solder Cup
