DI-503-POWER-IW

Active

Texmate

"TRIPLE DISPLAY, AC VOLTS, AMPS

Search across all available documentation for this part.

Active

Texmate

"TRIPLE DISPLAY, AC VOLTS, AMPS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1273.00

General part information

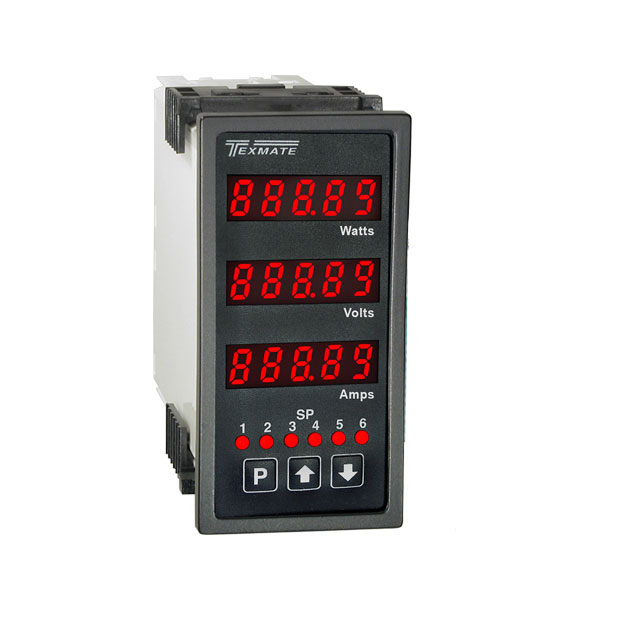

Energy Monitor Display Panel Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	DI-503-POWER-IW	DI-50 Series

Display Characters - Height	0.437 in	0.437 in
Display Characters - Height	11.1 mm	11.1 mm
Display Characters - Height	-	0.56 in
Display Characters - Height	-	14.22 mm
Features	Configuration Utility Software	Configuration Utility Software
Measuring Range	-	0 - 50 V
Measuring Range [Max]	5 A, 600 V	5 - 600 V
Measuring Type	Wattage, Voltage, Current	Voltage, Wattage, Current
Number of Characters Per Row	5	5
Output Type	Analog, Relay (4)	Analog, Relay (4)
Panel Cutout Dimensions [x]	92 mm	92 mm
Panel Cutout Dimensions [y]	45 mm	45 mm
Termination Style	Plug In Screw Terminals	Plug In Screw Terminals
Type	Energy Monitor	Voltmeter, Energy Monitor
Voltage - Supply [Max]	265 VAC, 300 VDC	265 - 300 VAC
Voltage - Supply [Min]	95 VDC, 85 VAC	85 - 95 VDC

PROCESS DC VOLTAGE 2V, 20V OR 20

Part	Number of Characters Per Row	Features	Measuring Range [Min]	Measuring Range [Max]	Output Type	Display Characters - Height [z]	Display Characters - Height [z]	Type	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Type	Display Characters - Height	Display Characters - Height
Texmate DI-50-DCV-ID01-AIC	5	Configuration Utility Software	0 V	200 V	Analog, Relay (4)	0.56 in	14.22 mm	Voltmeter	Plug In Screw Terminals	92 mm	45 mm	85 VAC, 95 VDC	265 VAC, 300 VDC	Voltage
Texmate DI-503-POWER-IW	5	Configuration Utility Software		5 A, 600 V	Analog, Relay (4)			Energy Monitor	Plug In Screw Terminals	92 mm	45 mm	85 VAC, 95 VDC	265 VAC, 300 VDC	Current, Voltage, Wattage	0.437 in	11.1 mm
Texmate DI-50-DCA-ID02	5	Configuration Utility Software	50 mV	100 mV	Analog, Relay (4)	0.56 in	14.22 mm	Voltmeter	Plug In Screw Terminals	92 mm	45 mm	85 VAC, 95 VDC	265 VAC, 300 VDC	Voltage
