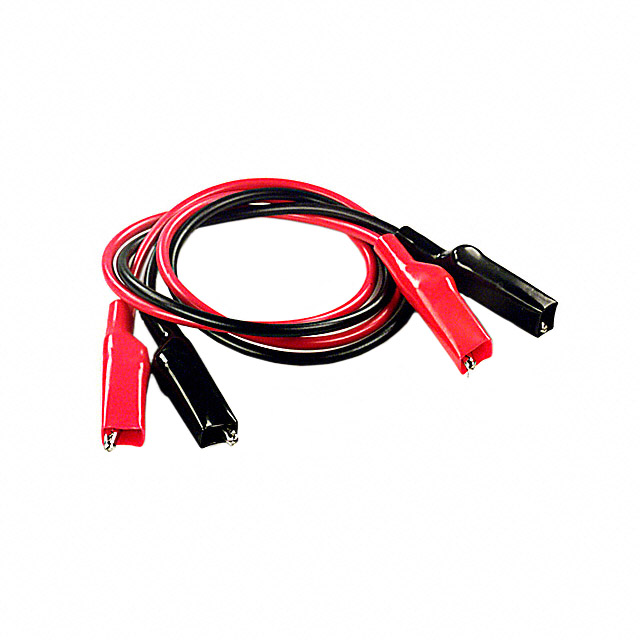

684-24 R/B

Active

E-Z-Hook

TEST LEAD GATOR TO GATOR 24"

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD GATOR TO GATOR 24"

Technical Specifications

Parameters and characteristics commom to parts in this series

TEST LEAD GATOR TO GATOR 24"

Part	Current Rating (Amps)	Cable Length	Cable Length	Voltage - Rated	Voltage - Rated	2nd Connector	Wire Gauge	Contents [custom]	Contents	1st Connector	Temperature Range	Temperature Range	Material - Insulation
E-Z-Hook 684-24RED	4 A	24 "	609.6 mm	5 kV	5 kV	Alligator Clip, Insulated	18 AWG	1	Red	Alligator Clip, Insulated	105 °C	221 °F	Poly-Vinyl Chloride (PVC)
E-Z-Hook 684-24 R/B	4 A	24 "	609.6 mm	5 kV	5 kV	Alligator Clip, Insulated	18 AWG		2 Leads, Black and Red	Alligator Clip, Insulated	105 °C	221 °F	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24.0" (609.60mm) Alligator Clip, Insulated To Alligator Clip, Insulated Test Lead 5000VDC (5kV) 2 Leads, Black and Red

Technical documentation and resources
