Description
General part information

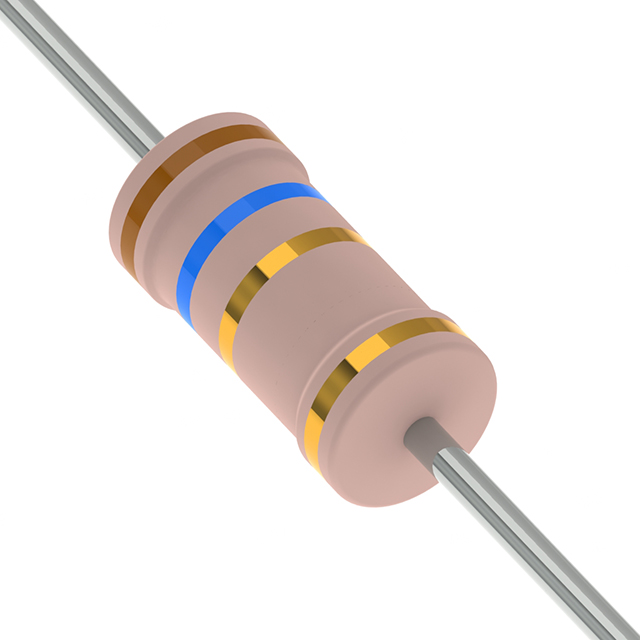

FMP300JR-73-1R6
1.6 Ohms ±5% 3W Through Hole Resistor Axial Flame Proof, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | FMP300JR-73-1R6 |
|---|---|
| Composition | Metal Film |
| Features | Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 3 W |
| Resistance | 1.6 Ohm |
| Size / Dimension Diameter | 0.197 in |
| Size / Dimension Length | 0.61 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
