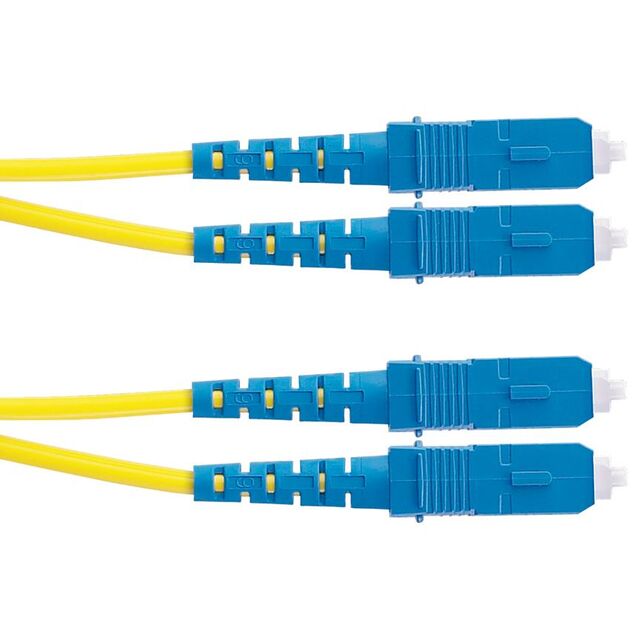

Specification	F923RSNSNSNM004

1st Connector	SC Duplex
2nd Connector	SC Duplex
Bend Radius	29 mm
Cable Diameter	0.12 "
Cable Type	Buffered Fiber
Color - Cable	Yellow
Color - Connectors	Black
Fiber Cladding Diameter	125 µm
Fiber Core Diameter	9 µm
Insertion Loss	0.5 dB
Length - Overall	13.1 ft
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Return Loss	55 dB
Type	OS2, Duplex, Singlemode

F923RS Series

Part	Bend Radius	Color - Cable	Operating Temperature (Max)	Operating Temperature (Min)	Color - Connectors	Insertion Loss	Return Loss	Cable Diameter	Type	Fiber Core Diameter	Fiber Cladding Diameter	Length - Overall	2nd Connector	Cable Type	1st Connector
Panduit Corp F923RSNSNSNM7.5	29 mm	Yellow	70 °C	-20 °C	Black	0.5 dB	55 dB	0.12 "	Duplex OS2 Singlemode	9 µm	125 µm	24.6 ft	SC Duplex	Buffered Fiber	SC Duplex
Panduit Corp F923RSNSNSNF024	29 mm	Yellow	70 °C	-20 °C	Black	0.5 dB	55 dB	0.12 "	Duplex OS2 Singlemode	9 µm	125 µm	24 ft	SC Duplex	Buffered Fiber	SC Duplex
Panduit Corp F923RSNSNSNM019	29 mm	Yellow	70 °C	-20 °C	Black	0.5 dB	55 dB	0.12 "	Duplex OS2 Singlemode	9 µm	125 µm	62.3 ft	SC Duplex	Buffered Fiber	SC Duplex
Panduit Corp F923RSNSNSNM041	29 mm	Yellow	70 °C	-20 °C	Black	0.5 dB	55 dB	0.12 "	Duplex OS2 Singlemode	9 µm	125 µm	134.5 ft	SC Duplex	Buffered Fiber	SC Duplex
Panduit Corp F923RSNSNSNF001	29 mm	Yellow	70 °C	-20 °C	Black	0.5 dB	55 dB	0.12 "	Duplex OS2 Singlemode	9 µm	125 µm	12 in	SC Duplex	Buffered Fiber	SC Duplex
Panduit Corp F923RSNSNSNM013	29 mm	Yellow	70 °C	-20 °C	Black	0.5 dB	55 dB	0.12 "	Duplex OS2 Singlemode	9 µm	125 µm	42.7 ft	SC Duplex	Buffered Fiber	SC Duplex
Panduit Corp F923RSNSNSNM050	29 mm	Yellow	70 °C	-20 °C	Black	0.5 dB	55 dB	0.12 "	Duplex OS2 Singlemode	9 µm	125 µm	164 ft	SC Duplex	Buffered Fiber	SC Duplex
Panduit Corp F923RSNSNSNF002	29 mm	Yellow	70 °C	-20 °C	Black	0.5 dB	55 dB	0.12 "	Duplex OS2 Singlemode	9 µm	125 µm	24 in	SC Duplex	Buffered Fiber	SC Duplex
Panduit Corp F923RSNSNSNF016	29 mm	Yellow	70 °C	-20 °C	Black	0.5 dB	55 dB	0.12 "	Duplex OS2 Singlemode	9 µm	125 µm	16.1 ft	SC Duplex	Buffered Fiber	SC Duplex
Panduit Corp F923RSNSNSNF085	29 mm	Yellow	70 °C	-20 °C	Black	0.5 dB	55 dB	0.12 "	Duplex OS2 Singlemode	9 µm	125 µm	85 ft	SC Duplex	Buffered Fiber	SC Duplex
