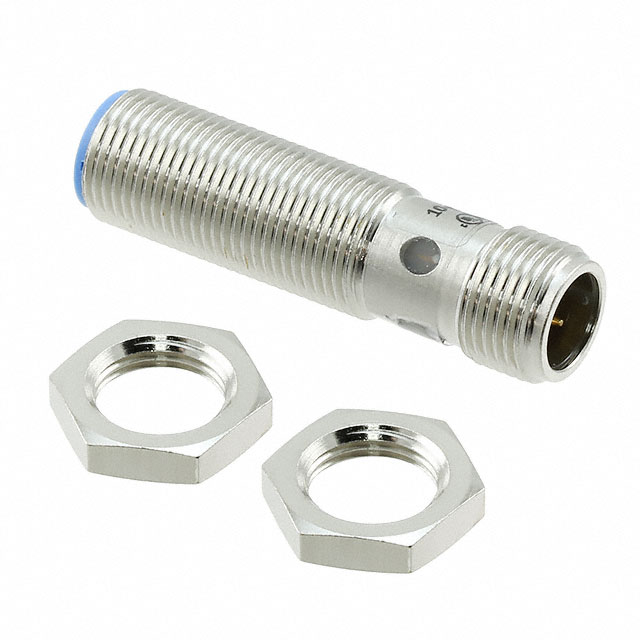

Specification	IME12-04BNSZC0K

Indicator	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-25 °C
Output Type	3-Wire, NPN-NO
Package / Case	Threaded - M12, Cylinder
Response Frequency	2 kHz
Sensing Distance	0.157 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

IME12 Series

Part	Shielding	Material - Body	Sensing Distance	Termination Style	Ingress Protection	Sensor Type	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Response Frequency	Package / Case	Indicator	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
SICK, Inc. 1040734	Shielded	Plastic	0.079 "	Cable Leads	IP67	Inductive	3-Wire PNP-NO	75 °C	-25 °C	2 kHz	Cylinder Threaded - M12	LED	10 VDC	30 VDC
SICK, Inc. IME12-04BNOZW2S	Shielded	Plastic	0.157 "	Cable Leads	IP67	Inductive	3-Wire NPN-NC	75 °C	-25 °C	2 kHz	Cylinder Threaded - M12	LED	10 VDC	30 VDC
SICK, Inc. 1040760	Shielded	Plastic	0.157 "	Connector	IP67	Inductive	3-Wire NPN-NC	75 °C	-25 °C	2 kHz	Cylinder Threaded - M12	LED	10 VDC	30 VDC
SICK, Inc. 1040787	Shielded	Plastic	0.315 "	Connector	IP67	Inductive	3-Wire NPN-NO	75 °C	-25 °C	2 kHz	Cylinder Threaded - M12	LED	10 VDC	30 VDC
SICK, Inc. 1040764	Unshielded	Nickel-Plated Brass	0.157 "	Connector	IP67	Inductive	3-Wire PNP-NO	75 °C	-25 °C	2 kHz	Cylinder Threaded - M12	LED	10 VDC	30 VDC
SICK, Inc. 1068256	Shielded	Plastic	0.315 "	Cable Leads	IP67	Inductive	2-Wire NC	75 °C	-25 °C	2 kHz	Cylinder Threaded - M12	LED	10 VDC	30 VDC
SICK, Inc. IME12-02BNOZC0K	Shielded	Plastic	0.079 "	Connector	IP67	Inductive	3-Wire NPN-NC	75 °C	-25 °C	2 kHz	Cylinder Threaded - M12	LED	10 VDC	30 VDC
SICK, Inc. 1058759	Shielded	Plastic	0.157 "	Connector	IP67	Inductive	3-Wire PNP-NO	75 °C	-25 °C	2 kHz	Cylinder Threaded - M12	LED	10 VDC	30 VDC
SICK, Inc. IME12-02BPOZC0K	Shielded	Plastic	0.079 "	Connector	IP67	Inductive	3-Wire PNP-NC	75 °C	-25 °C	2 kHz	Cylinder Threaded - M12	LED	10 VDC	30 VDC
SICK, Inc. 1040780	Unshielded	Nickel-Plated Brass	0.315 "	Connector	IP67	Inductive	3-Wire PNP-NO	75 °C	-25 °C	2 kHz	Cylinder Threaded - M12	LED	10 VDC	30 VDC
