Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ALED7707 | ALED7707 Series |
|---|---|---|
| - | - | |
| Applications | Backlight | Backlight |
| Current - Output / Channel | 85 mA | 85 mA |
| Dimming | PWM | PWM |
| Frequency [Max] | 1 MHz | 1 MHz |
| Frequency [Min] | 250 kHz | 250 kHz |
| Grade | Automotive | Automotive |
| Internal Switch(s) | True | True |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 6 | 6 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

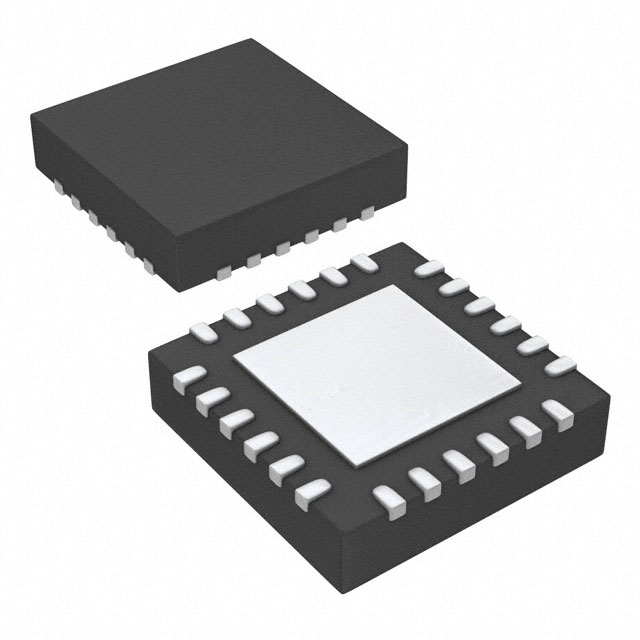

| Package / Case | 24-VQFN Exposed Pad | 24-VQFN Exposed Pad |
| Qualification | AEC-Q100 | AEC-Q100 |
| Supplier Device Package | 24-QFN (5x5) | 24-QFN (5x5) |
| Topology | Step-Up (Boost) | Step-Up (Boost) |
| Type | DC DC Regulator | DC DC Regulator |
| Voltage - Output | 36 V | 36 V |
| Voltage - Supply (Max) [Max] | 36 V | 36 V |
| Voltage - Supply (Min) [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 2940 | $ 1.42 | |
ALED7707 Series
6-row 85 mA LEDs driver with boost regulator for LCD panel backlights
| Part | Internal Switch(s) | Frequency [Max] | Frequency [Min] | Package / Case | Applications | Supplier Device Package | Number of Outputs | Mounting Type | Voltage - Supply (Max) [Max] | Voltage - Supply (Min) [Min] | Type | Qualification | Grade | Voltage - Output | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output / Channel | Dimming |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics ALED7707TR | |||||||||||||||||||
STMicroelectronics ALED7707 | 1 MHz | 250 kHz | 24-VQFN Exposed Pad | Backlight | 24-QFN (5x5) | 6 | Surface Mount | 36 V | 4.5 V | DC DC Regulator | AEC-Q100 | Automotive | 36 V | Step-Up (Boost) | 150 °C | -40 °C | 85 mA | PWM | |
STMicroelectronics ALED7707 |
Description
General part information
ALED7707 Series
The ALED7707 device consists of an automotive grade (AEC Q100 compliant) monolithic boost converter and six controlled current generators (rows) specifically designed to supply LED arrays used in the backlighting of LCD panels. The device can manage an output voltage up to 36 V (i.e.: 10 white LEDs per row).
The generators can be externally programmed to sink up to 85 mA and can be dimmed via a PWM signal (1% dimming duty cycle at 1 kHz can be managed). The device allows to detect and manage the open and shorted LED faults and to let unused rows floating. Basic protections (output overvoltage, internal MOSFET overcurrent and thermal shutdown) are provided.
