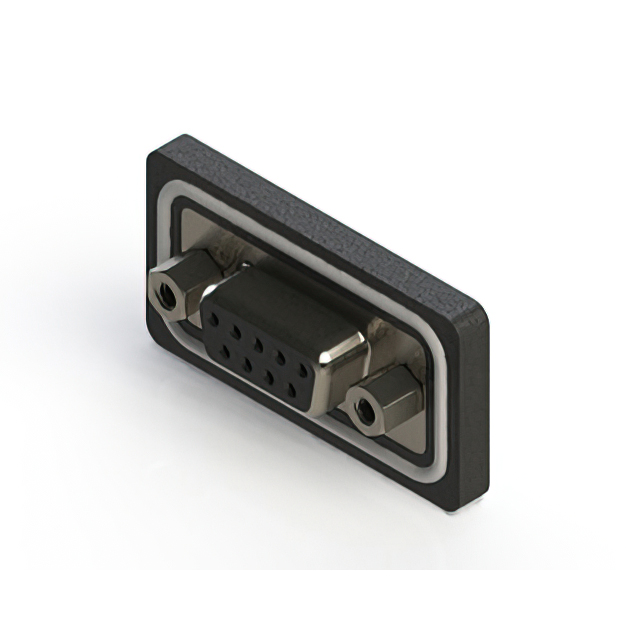

628-W09-222-012
ActiveEDAC Inc.
CONN D-SUB RCPT 9POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
628-W09-222-012
ActiveEDAC Inc.
CONN D-SUB RCPT 9POS PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-W09-222-012 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.07 | |
| 10 | $ 12.47 | |||
| 48 | $ 11.51 | |||
| 96 | $ 10.87 | |||
| 288 | $ 9.91 | |||
| 528 | $ 9.27 | |||
| 1008 | $ 8.50 | |||
Description
General part information
628-W09 Series
25 Position D-Sub Receptacle, Female Sockets Connector
