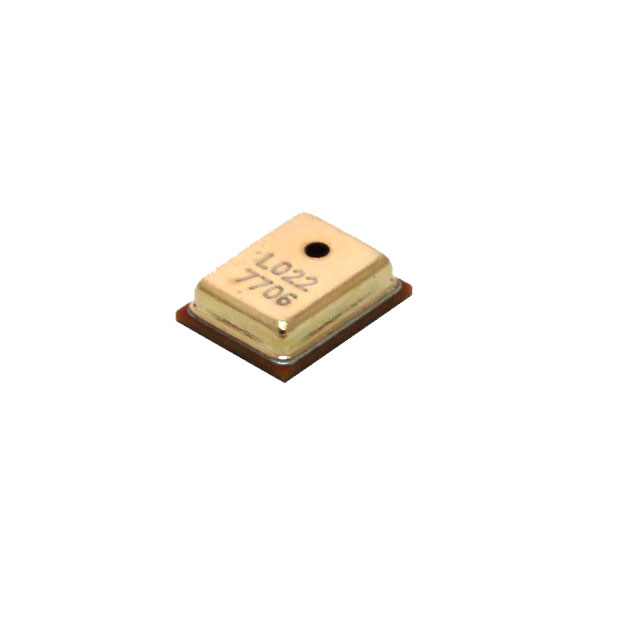

MM034202-7
ActiveDB Unlimited
MIC MEMS ANALOG OMNI -42DB
MM034202-7
ActiveDB Unlimited
MIC MEMS ANALOG OMNI -42DB
Description
General part information
MM034202-7
30 Hz ~ 10 kHz Analog Microphone MEMS (Silicon) Omnidirectional (-42dB) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | MM034202-7 |
|---|---|
| Current - Supply | 80 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 30 Hz |
| Height (Max) | 0.047 in |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Sensitivity | -42 dB |
| Shape | Rectangular |
| Size / Dimension Length | 0.148 in |
| Size / Dimension Width | 0.116 in |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 2 VAC |
