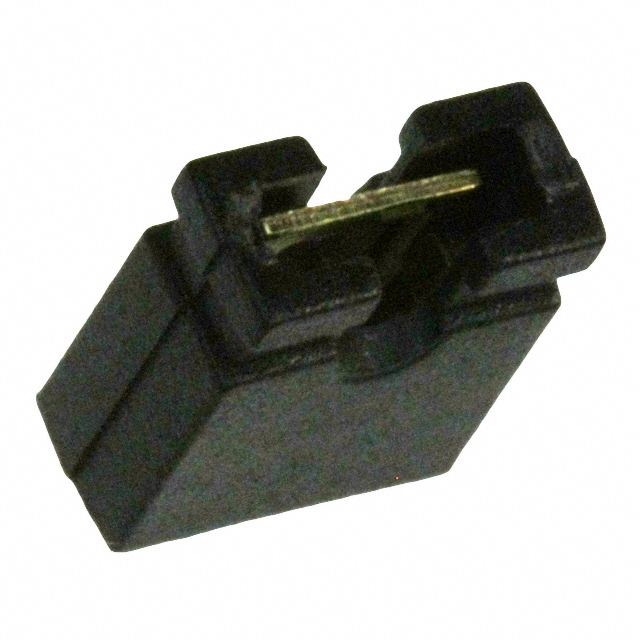

969102-0000-DA

Obsolete

3M (TC)

SHUNT JUMPER .1" BLACK GOLD

Search across all available documentation for this part.

Obsolete

3M (TC)

SHUNT JUMPER .1" BLACK GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	969102-0000-DA

Color	Black
Contact Finish	Gold
Current Rating (Amps)	2 A
Gender	Female Sockets
Height [z]	6 mm
Height [z]	0.236 "
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top

Part	Housing Material	Contact Finish	Material Flammability Rating	Color	Type	Current Rating (Amps)	Height [z]	Height [z]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Gender	Pitch [x]	Pitch [x]
3M (TC) 969102-0000-DA	Polybutylene Terephthalate (PBT)	Gold	UL94 V-0	Black	Open Top	2 A	6 mm	0.236 "	1 x 2	2	Female Sockets	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold
