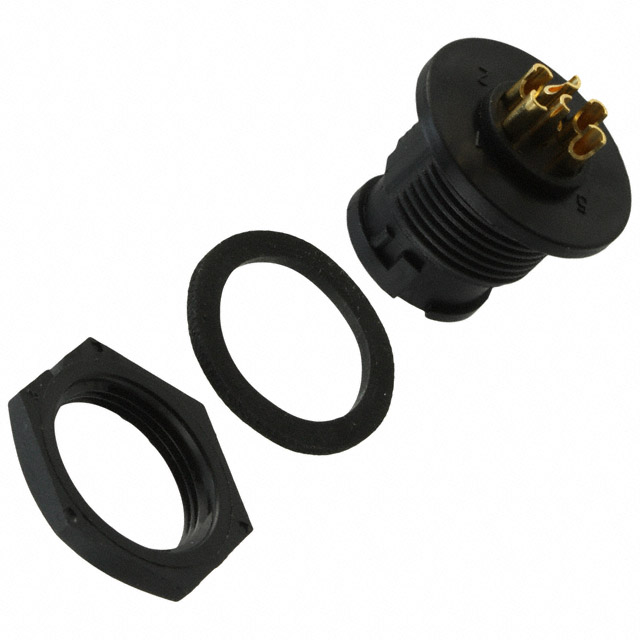

7282-6PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
7282-6PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7282-6PG-300 | 7282-6PG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
7282-6PG Series
CONN RCPT MALE 6P GOLD SLDR CUP
| Part | Mounting Feature | Backshell Material, Plating | Number of Positions | Shielding | Color | Primary Material | Applications | Orientation | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Fastening Type | Current Rating (Amps) | Voltage Rating | Contact Material | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 7282-6PG-3ES | Bulkhead - Front Side Nut | Nylon, Polyamide (PA) | 6 | Unshielded | Black | Plastic | Automotive, Communication Systems, Instrumentation | Keyed | Weathertight | -40 °C | 115 °C | Male Pins, Receptacle | Bayonet Lock | Varies by Wire Gauge | 600 V | Brass | Gold |
Conxall/Switchcraft 7282-6PG-300 | Bulkhead - Front Side Nut | Nylon, Polyamide (PA) | 6 | Unshielded | Black | Plastic | Automotive, Communication Systems, Instrumentation | Keyed | Weathertight | -40 °C | 115 °C | Male Pins, Receptacle | Bayonet Lock | Varies by Wire Gauge | 600 V | Brass | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.13 | |
| 10 | $ 9.87 | |||
| 25 | $ 9.49 | |||
| 50 | $ 9.11 | |||
| 100 | $ 8.60 | |||
| 250 | $ 7.84 | |||
| 500 | $ 7.34 | |||
| 1000 | $ 6.73 | |||
Description
General part information
7282-6PG Series
6 Position Circular Connector Receptacle, Male Pins Solder Cup
