9772 060500

Active

Belden Inc.

12 #22 SHTRP PP PVC

Search across all available documentation for this part.

Active

Belden Inc.

12 #22 SHTRP PP PVC

Technical Specifications

Parameters and characteristics for this part

Specification	9772 060500

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	18.42 mm
Jacket (Insulation) Diameter [diameter]	0.725 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.06 in
Jacket (Insulation) Thickness	1.524 mm
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	36
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Features	Jacket Color	Length [x]	Length [x]	Usage	Number of Conductors	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Wire Gauge
Belden Inc. 9772 060500	Copper Tinned	Drain Wire Rip Cord	Chrome	500 '	152.4 m	Audio Instrumentation	36	Multi-Pair	18.42 mm	0.725 in	7	30 AWG	Polypropylene (PP)	300 V	0.06 in	1.524 mm	-20 C	80 C	Poly-Vinyl Chloride (PVC)	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 10.80

General part information

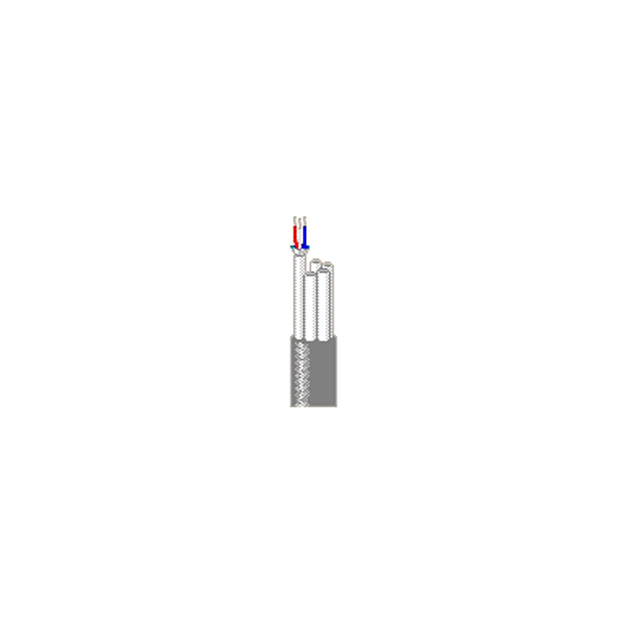

36 (12 Triad) Conductor Multi-Pair Cable Chrome 22 AWG 500.0' (152.4m)
