Description
General part information
BCI-S-48-BK

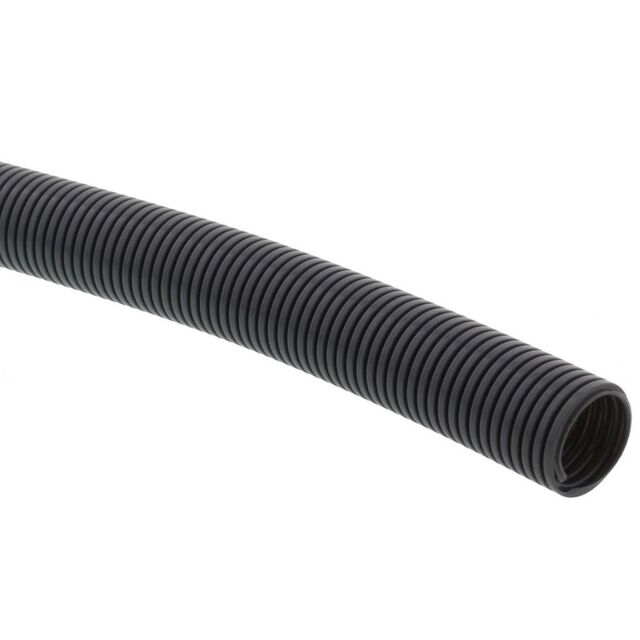

Black Polyamide (PA12), Nylon 12 Convoluted, Corrugated Wire Loom, Protective Hose 1.870" (47.50mm) 82.02' (25.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | BCI-S-48-BK |
|---|---|
| Color | Black |
| Diameter - Inside | 1.87 in |
| Diameter - Outside | 2.134 in |
| Length | 82.02 ft |
| Material | Polyamide (PA12), Nylon 12 |
| Material Flammability Rating | UL VW-1 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -50 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
| Wall Thickness | 0.02 in |
