MOT-52MM MOTOR24V
ActiveISL Products International

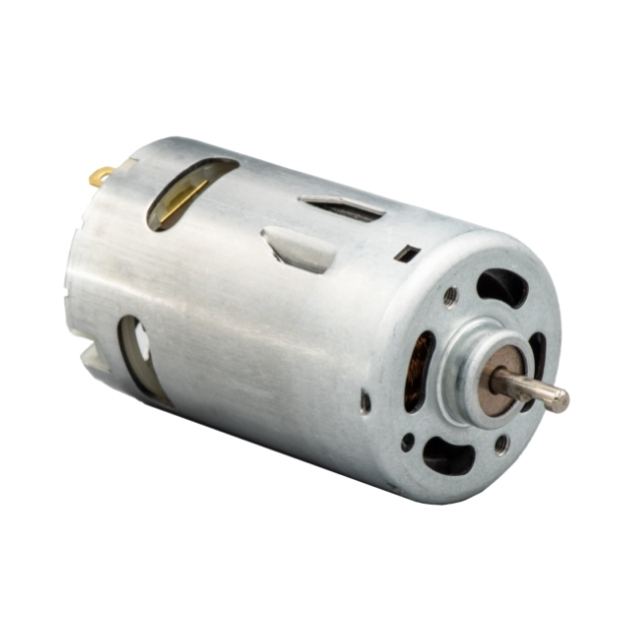

52MM BRUSHED DC MOTOR, 24VDC
MOT-52MM MOTOR24V
ActiveISL Products International
52MM BRUSHED DC MOTOR, 24VDC
Description
General part information
MOT-52MM MOTOR24V
Brushed DC Motor 1490 RPM 7.5W 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-52MM MOTOR24V |
|---|---|
| Diameter - Shaft | 0.25 in |
| Length - Shaft and Bearing | 2.716 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 1.259 in |
| Power - Rated | 7.5 W |
| RPM | 1490 RPM |
| Size / Dimension Diameter | 2.047 in |
| Size / Dimension Shape | Round |
| Torque - Max Momentary (mNm) | 225.55 mNm |
| Torque - Max Momentary (oz-in) | 31.94 oz-in |
| Torque - Rated (mNm) | 48.1 mNm |
| Torque - Rated (oz-in) | 6.8 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VAC |
