1069313
ActivePhoenix Contact

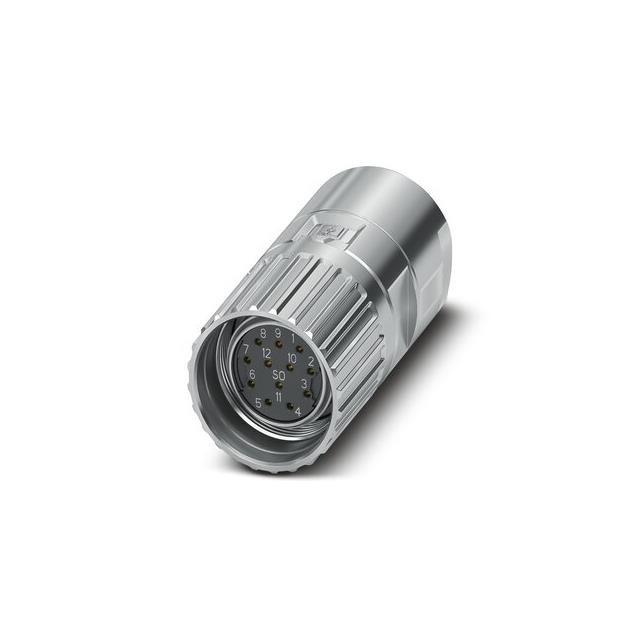

SENSOR CONNECTOR, M23, RCPT, 12POS/CABLE ROHS COMPLIANT: YES
1069313
ActivePhoenix Contact
SENSOR CONNECTOR, M23, RCPT, 12POS/CABLE ROHS COMPLIANT: YES
Description
General part information
1069313
12 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
Technical Specifications
Parameters and characteristics for this part
| Specification | 1069313 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP69K, IP68, IP66 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Primary Material | Metal |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23-12 |
| Shielding | Shielded |
| Type | For Female Sockets |
