CP30752MB
ActiveCLIFF Electronic Components Ltd
RAFT BLKMETAL DLSLIM CAT6 CSK
CP30752MB
ActiveCLIFF Electronic Components Ltd
RAFT BLKMETAL DLSLIM CAT6 CSK
Description
General part information
CP30752MB

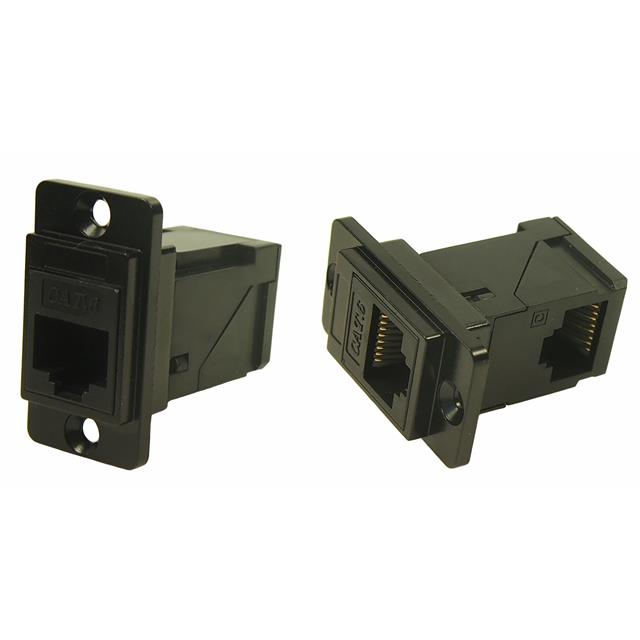

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Cat6 Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | CP30752MB |
|---|---|
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Convert From (Adapter End) | 8p8c (RJ45), Jack |
| Convert To (Adapter End) | Jack, 8p8c (RJ45) |
| Housing Material | ABS, Acrylonitrile Butadiene Styrene |
| Mounting Feature | Flange |
| Mounting Type | Flange (2 Hole), Panel Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Ratings | Cat6 |
| Shielding | Unshielded |
| Type | Coupler |
