SIT1532AI-J4-D26-32.768D

Active

SiTime

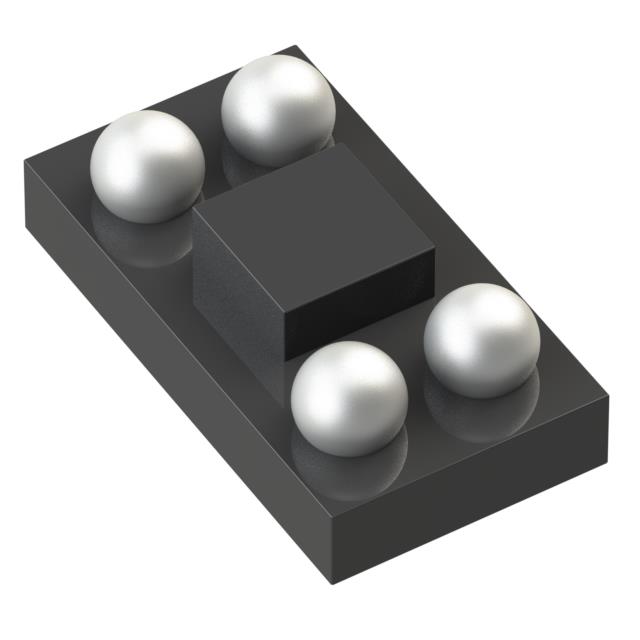

MEMS OSC XO 32.7680KHZ NANODRIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturing Notes for SiTime Products Datasheet

SIT1532AI-J4-D26-32.768D

Active

SiTime

MEMS OSC XO 32.7680KHZ NANODRIVE

Deep-Dive with AI

DocumentsManufacturing Notes for SiTime Products Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.24
		10	$ 1.19
		50	$ 1.16
		100	$ 0.99
		500	$ 0.97
		1000	$ 0.81
	Digi-Reel®	1	$ 1.24
		10	$ 1.19
		50	$ 1.16
		100	$ 0.99
		500	$ 0.97
		1000	$ 0.81
	Tape & Reel (TR)	3000	$ 0.77
		6000	$ 0.74

Description

General part information

SIT1532 Series

32.768 kHz XO (Standard) NanoDrive™ Oscillator 1.2V ~ 3.63V 4-UFBGA, CSPBGA

Documents

Technical documentation and resources

Manufacturing Notes for SiTime Products

Datasheet

Specification	SIT1532AI-J4-D26-32.768D	SIT1532 Series

Base Resonator	MEMS	MEMS
Current - Supply (Max) [Max]	1.4 µA	1.3 - 1.4 µA
Frequency	32.768 kHz	32.768 kHz
Frequency Stability	100 ppm	75 - 100 ppm
Height - Seated (Max) [Max] [z]	0.6 mm	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in	0.024 in
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	-10 °C
Operating Temperature	-	158 °F
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	-	LVCMOS
Package / Case	4-UFBGA, CSPBGA	4-UFBGA, CSPBGA
Size / Dimension [x]	1.54 mm	1.54 mm
Size / Dimension [x]	0.061 in	0.061 in
Size / Dimension [y]	0.84 mm	0.84 mm
Size / Dimension [y]	0.033 in	0.033 in
Supplier Device Package	4-CSP (1.54x.84)	4-CSP (1.54x.84)
Type	XO (Standard)	XO (Standard)
Voltage - Supply [Max]	3.63 V	3.63 V
Voltage - Supply [Min]	1.2 V	1.2 - 1.5 V

Part

Current - Supply (Max) [Max]

Base Resonator

Package / Case

Height - Seated (Max) [Max] [z]

Frequency

Mounting Type

Voltage - Supply [Max]

Voltage - Supply [Min]

Output

Type

Operating Temperature [Min] [custom]

Operating Temperature [Max] [custom]

Size / Dimension [x]

Size / Dimension [y]

Size / Dimension [x]

Frequency Stability

Operating Temperature [Max]

Operating Temperature [Min]

Supplier Device Package

SiTime

SIT1532AC-J5-DCC-32.768Q

1.3 µA

MEMS

4-UFBGA, CSPBGA

0.6 mm

0.024 in

32.768 kHz

Surface Mount

3.63 V

1.2 V

LVCMOS

XO (Standard)

-10 °C

158 °F

1.54 mm

0.84 mm

0.033 in

0.061 in

75 ppm

SiTime

SIT1532AI-J4-DCC-32.768D

1.4 µA

MEMS

4-UFBGA, CSPBGA

0.6 mm

0.024 in

32.768 kHz

Surface Mount

3.63 V

1.2 V

LVCMOS

XO (Standard)

1.54 mm

0.84 mm

0.033 in

0.061 in

100 ppm

85 °C

-40 °C

SiTime

SIT1532AI-J4-AA2-32.768G

1.4 µA

MEMS

4-UFBGA, CSPBGA

0.6 mm

0.024 in

32.768 kHz

Surface Mount

3.63 V

1.5 V

XO (Standard)

1.54 mm

0.84 mm

0.033 in

0.061 in

100 ppm

85 °C

-40 °C

SiTime

SIT1532AC-J5-DCC-32.768D

1.3 µA

MEMS

4-UFBGA, CSPBGA

0.6 mm

0.024 in

32.768 kHz

Surface Mount

3.63 V

1.2 V

LVCMOS

XO (Standard)

-10 °C

158 °F

1.54 mm

0.84 mm

0.033 in

0.061 in

75 ppm

SiTime

SIT1532AI-J4-D14-32.768S

1.4 µA

MEMS

4-UFBGA, CSPBGA

0.6 mm

0.024 in

32.768 kHz

Surface Mount

3.63 V

1.2 V

XO (Standard)

1.54 mm

0.84 mm

0.033 in

0.061 in

100 ppm

85 °C

-40 °C

SiTime

SIT1532AI-J4-D26-32.768D

1.4 µA

MEMS

4-UFBGA, CSPBGA

0.6 mm

0.024 in

32.768 kHz

Surface Mount

3.63 V

1.2 V

XO (Standard)

1.54 mm

0.84 mm

0.033 in

0.061 in

100 ppm

85 °C

-40 °C

4-CSP (1.54x.84)

SiTime

SIT1532AC-J5-DCC-32.768E

1.3 µA

MEMS

4-UFBGA, CSPBGA

0.6 mm

0.024 in

32.768 kHz

Surface Mount

3.63 V

1.2 V

LVCMOS

XO (Standard)

-10 °C

158 °F

1.54 mm

0.84 mm

0.033 in

0.061 in

75 ppm

SiTime

SIT1532AC-J5-D14-32.768G

1.3 µA

MEMS

4-UFBGA, CSPBGA

0.6 mm

0.024 in

32.768 kHz

Surface Mount

3.63 V

1.2 V

XO (Standard)

-10 °C

158 °F

1.54 mm

0.84 mm

0.033 in

0.061 in

75 ppm

SiTime

SIT1532AI-J4-D26-32.768E

1.4 µA

MEMS

4-UFBGA, CSPBGA

0.6 mm

0.024 in

32.768 kHz

Surface Mount

3.63 V

1.5 V

XO (Standard)

1.54 mm

0.84 mm

0.033 in

0.061 in

100 ppm

85 °C

-40 °C

SiTime

SIT1532AC-J5-DCC-32.768S

1.3 µA

MEMS

4-UFBGA, CSPBGA

0.6 mm

0.024 in

32.768 kHz

Surface Mount

3.63 V

1.2 V

LVCMOS

XO (Standard)

-10 °C

158 °F

1.54 mm

0.84 mm

0.033 in

0.061 in

75 ppm

Part	Current - Supply (Max) [Max]	Base Resonator	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency Stability	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
SiTime SIT1532AC-J5-DCC-32.768Q	1.3 µA	MEMS	4-UFBGA, CSPBGA	0.6 mm	0.024 in	32.768 kHz	Surface Mount	3.63 V	1.2 V	LVCMOS	XO (Standard)	-10 °C	158 °F	1.54 mm	0.84 mm	0.033 in	0.061 in	75 ppm
SiTime SIT1532AI-J4-DCC-32.768D	1.4 µA	MEMS	4-UFBGA, CSPBGA	0.6 mm	0.024 in	32.768 kHz	Surface Mount	3.63 V	1.2 V	LVCMOS	XO (Standard)			1.54 mm	0.84 mm	0.033 in	0.061 in	100 ppm	85 °C	-40 °C
SiTime SIT1532AI-J4-AA2-32.768G	1.4 µA	MEMS	4-UFBGA, CSPBGA	0.6 mm	0.024 in	32.768 kHz	Surface Mount	3.63 V	1.5 V		XO (Standard)			1.54 mm	0.84 mm	0.033 in	0.061 in	100 ppm	85 °C	-40 °C
SiTime SIT1532AC-J5-DCC-32.768D	1.3 µA	MEMS	4-UFBGA, CSPBGA	0.6 mm	0.024 in	32.768 kHz	Surface Mount	3.63 V	1.2 V	LVCMOS	XO (Standard)	-10 °C	158 °F	1.54 mm	0.84 mm	0.033 in	0.061 in	75 ppm
SiTime SIT1532AI-J4-D14-32.768S	1.4 µA	MEMS	4-UFBGA, CSPBGA	0.6 mm	0.024 in	32.768 kHz	Surface Mount	3.63 V	1.2 V		XO (Standard)			1.54 mm	0.84 mm	0.033 in	0.061 in	100 ppm	85 °C	-40 °C
SiTime SIT1532AI-J4-D26-32.768D	1.4 µA	MEMS	4-UFBGA, CSPBGA	0.6 mm	0.024 in	32.768 kHz	Surface Mount	3.63 V	1.2 V		XO (Standard)			1.54 mm	0.84 mm	0.033 in	0.061 in	100 ppm	85 °C	-40 °C	4-CSP (1.54x.84)
SiTime SIT1532AC-J5-DCC-32.768E	1.3 µA	MEMS	4-UFBGA, CSPBGA	0.6 mm	0.024 in	32.768 kHz	Surface Mount	3.63 V	1.2 V	LVCMOS	XO (Standard)	-10 °C	158 °F	1.54 mm	0.84 mm	0.033 in	0.061 in	75 ppm
SiTime SIT1532AC-J5-D14-32.768G	1.3 µA	MEMS	4-UFBGA, CSPBGA	0.6 mm	0.024 in	32.768 kHz	Surface Mount	3.63 V	1.2 V		XO (Standard)	-10 °C	158 °F	1.54 mm	0.84 mm	0.033 in	0.061 in	75 ppm
SiTime SIT1532AI-J4-D26-32.768E	1.4 µA	MEMS	4-UFBGA, CSPBGA	0.6 mm	0.024 in	32.768 kHz	Surface Mount	3.63 V	1.5 V		XO (Standard)			1.54 mm	0.84 mm	0.033 in	0.061 in	100 ppm	85 °C	-40 °C
SiTime SIT1532AC-J5-DCC-32.768S	1.3 µA	MEMS	4-UFBGA, CSPBGA	0.6 mm	0.024 in	32.768 kHz	Surface Mount	3.63 V	1.2 V	LVCMOS	XO (Standard)	-10 °C	158 °F	1.54 mm	0.84 mm	0.033 in	0.061 in	75 ppm
