MAXQ617V-L000+T
ActiveAnalog Devices Inc./Maxim Integrated

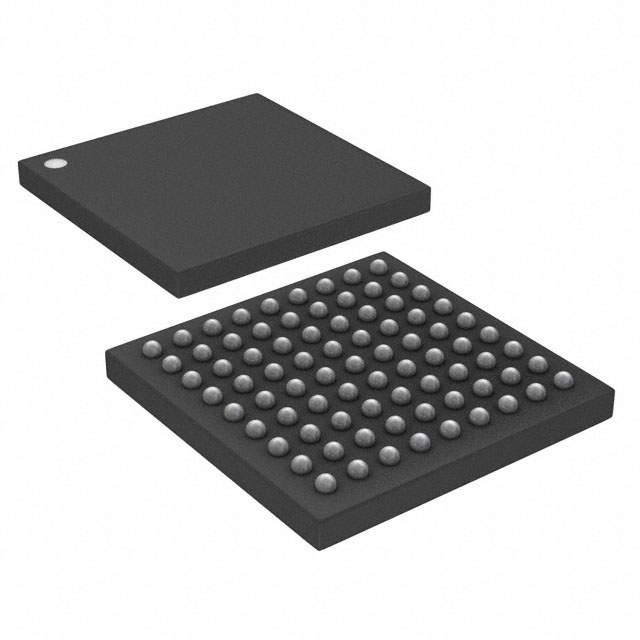

IC MCU 16BIT 80KB FLASH 81WLP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXQ617V-L000+T
ActiveAnalog Devices Inc./Maxim Integrated
IC MCU 16BIT 80KB FLASH 81WLP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXQ617V-L000+T | MAXQ617 Series |
|---|---|---|
| Board Type | - | Evaluation Platform |
| Connectivity | I2C, SPI, UART/USART | I2C, SPI, UART/USART |
| Contents | - | Board(s) |
| Core Processor | MAXQ20S | MAXQ20S |
| Core Size | 16-Bit | 16-Bit |
| Mounting Type | Surface Mount | Surface Mount, Fixed |
| Number of I/O | 10 | 10 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -20 °C | -20 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 81-WFBGA, WLBGA | 81-WFBGA, WLBGA, 16-WFBGA |
| Program Memory Size | 80 KB | 80 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 4K x 8 | 4K x 8 |
| Speed | 12 MHz | 12 MHz |
| Supplier Device Package | 81-WLP | 81-WLP, 16-WLP |
| Supplier Device Package [x] | 3.95 | 3.95 |
| Supplier Device Package [y] | 4.11 | 4.11 |
| Type | - | MCU 16-Bit |
| Utilized IC / Part | - | MAXQ617 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.67 V | 1.67 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 1.46 | |
MAXQ617 Series
IC MCU 16BIT 80KB FLASH 81WLP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Speed | Program Memory Type | Supplier Device Package [x] | Supplier Device Package [y] | Supplier Device Package | Connectivity | Core Size | Program Memory Size | Mounting Type | Number of I/O | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | RAM Size | Core Processor | Package / Case | Oscillator Type | Utilized IC / Part | Type | Contents | Board Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXQ617V-L000+T | 70 °C | -20 °C | 12 MHz | FLASH | 3.95 | 4.11 | 81-WLP | I2C, SPI, UART/USART | 16-Bit | 80 KB | Surface Mount | 10 | 3.6 V | 1.67 V | 4K x 8 | MAXQ20S | 81-WFBGA, WLBGA | Internal | ||||
Analog Devices Inc./Maxim Integrated MAXQ617EVKIT# | Fixed | MAXQ20S | MAXQ617 | MCU 16-Bit | Board(s) | Evaluation Platform | ||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXQ617V-L001+U | 70 °C | -20 °C | 12 MHz | FLASH | 16-WLP | I2C, SPI, UART/USART | 16-Bit | 80 KB | Surface Mount | 10 | 3.6 V | 1.67 V | 4K x 8 | MAXQ20S | 16-WFBGA, WLBGA | Internal | ||||||
Analog Devices Inc./Maxim Integrated MAXQ617V-L001+T | 70 °C | -20 °C | 12 MHz | FLASH | 16-WLP | I2C, SPI, UART/USART | 16-Bit | 80 KB | Surface Mount | 10 | 3.6 V | 1.67 V | 4K x 8 | MAXQ20S | 16-WFBGA, WLBGA | Internal |
Description
General part information
MAXQ617 Series
MAXQ20S MAXQ® Microcontroller IC 16-Bit 12MHz 80KB (40K x 16) FLASH 81-WLP (3.95x4.11)
