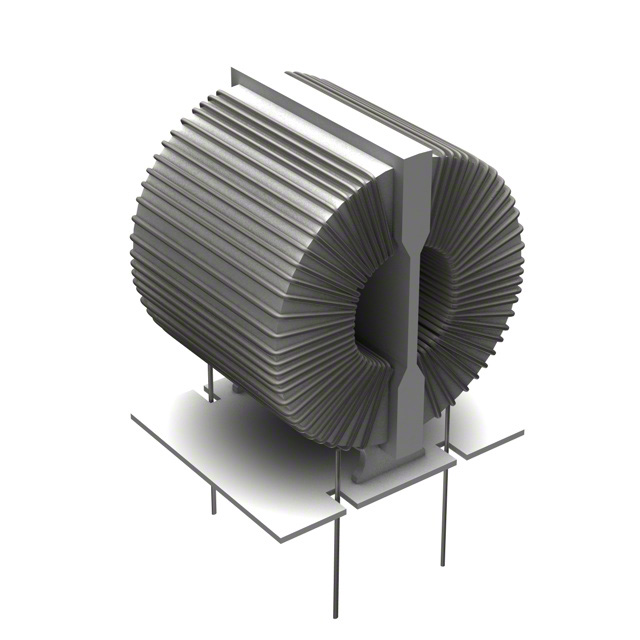

TF2326VU-102Y6R0-01
ObsoleteTDK Corporation
CMC 6A 2LN TH
TF2326VU-102Y6R0-01
ObsoleteTDK Corporation
CMC 6A 2LN TH
Description
General part information
TF2326VU-102Y6R0-01
2 Line Common Mode Choke Through Hole 6A DCR 30mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | TF2326VU-102Y6R0-01 |
|---|---|
| Current Rating (Max) | 6 A |
| DC Resistance (DCR) (Max) | 30 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.024 in |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.906 in |
| Size / Dimension Width | 0.787 in |
